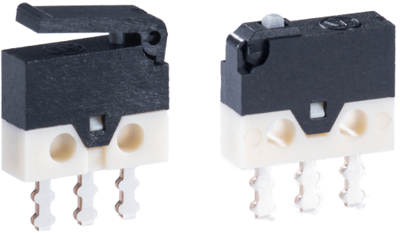

DHGC-B1LA | ZF Switches and Sensors

Ultraminiature snap-action switche, On-On, solder connection, simulated roll, 0.5 N, 0.5 A/30 VDC, IP40, DHGC-B1LA

Order No.: 13G1226
MPN:
DHGC-B1LA
Series: DH
DHGC-B1LA ZF Switches and Sensors Snap Action Switches
Image may differ
Unit Price (€ / pc.)
1.7136 € *
Available in 5 Days: 8,000 pcs. - if ordered today
Total Price:
1.71 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1.7136 €

Ultra-miniature snap-action switch, DHGC-B1LA, ZF Switches and Sensors

Ultra-miniature snap-action switch, SPDT, 30 VDC, IP40.

Features

  • Dimensions only 8.2 mm × 2.7 mm × 6.2 mm
  • Designed for low switching currents and voltages
Technical specifications
Latching switching function On-On
Actuator simulated roll
actuating force 0.5 N
Switching point 6.7 mm ±0.5 mm
Connection solder connection
Design straight
Shell Material PPS
Breaking capacity 0.5 A/30 VDC
Protection class IP40
Logistics
Customs tariff number 85365080
Country of origin CN
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
