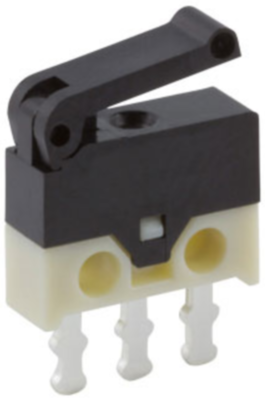

Ultraminiature snap-action switche, On-On, solder connection, roller lever, 0.5 N, 0.05 A/30 VDC, IP40, DH2C-B1PA

Order No.: 13G1058

EAN: 4099889212440

MPN:

DH2C-B1PA

Image may differ

Key Specification:

Latching switching function On-On

Actuator roller lever

actuating force 0.5 N

Switching point 6.7 mm ±0.5 mm

Connection solder connection

Download Datasheet Technical specifications

This item is no longer available.

As an alternative, we recommend the following item:

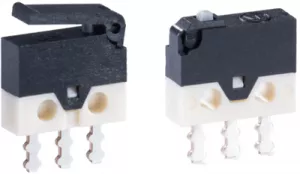

Ultraminiature snap-action switche, On-On, solder connection, simulated roll, 0.5 N, 0.5 A/30 VDC, IP40, DHGC-B1LA

Order No.: 13G1226

Manufacturer: ZF Switches and Sensors

per pc. 1.7136 € *

Go to product

*incl. VAT plus shipping costs

Description

Ultra-miniature snap-action switches, type Cherry DH2C.

Designed especially for low switching currents and voltages; Switching action: CO. Breaking power: 5.0 to 500 mA/30 VDC. Contacts: AuAgPt. Connections: CuZn, silver-plated. Electrical useful life: 30.000 switching cycles. Operating temperatures: –25 to +70 °C. Degree of protection: IP 40. Dimensions: 8.2 x 2.7 x 6,2 mm.

With auxiliary actuator, type DH2C.

Switch actuating force: maximum 50 cN. Action point: 6.7 mm (±0.5). Pretravel: maximum 1.3 mm. Overtravel: minimum 0.3 mm. Travel difference: maximum 0.6 mm. Home position: maximum 8.5 mm.

Technical attributes (type, termination): DH2C-B1PA, solder terminals

Technical specifications

Filter	Property	Value
	Latching switching function	On-On
	Actuator	roller lever
	actuating force	0.5 N
	Switching point	6.7 mm ±0.5 mm
	Connection	solder connection
	Design	straight
	Shell Material	PPS
	Breaking capacity	0.05 A/30 VDC
	Protection class	IP40
