DGE3-E7LC | ZF Switches and Sensors

Subminiature snap-action switch, On-On, hinge lever, 4.9 N, 3 (0.5) A/125 VAC, 250 VAC, DGE3-E7LC

Order No.: 13G1186
EAN: 4099891654689
MPN:
DGE3-E7LC
Series: DG

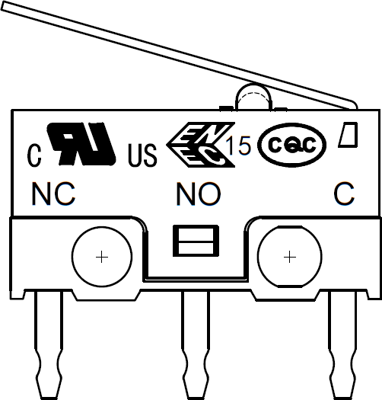

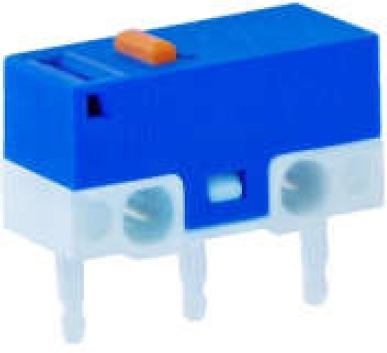

DGE3-E7LC ZF Switches and Sensors Snap Action Switches Image 1
DGE3-E7LC ZF Switches and Sensors Snap Action Switches Image 2
Image may differ
Unit Price (€ / pc.)
1.3090 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
2,618.00 € *
*incl. VAT plus shipping costs
Subject to prior sale
2000 pcs.
1.3090 €

Subminiature Switch, DGE3-E7LC, ZF Switches and Sensors

Subminiature Switch with breaking capacity ranges from small switching currents and voltages to low-voltage applications up to 3 a 250 VAC, DC rating up to 3 A 30 VDC (UL).

Features

  • Approved according IEC 61058-1 / UL 61058-1
  • Use on circuit boards with connections to the left or right and straight
  • High mechanical operating life, depending on model > 1,000,000 operations
Technical specifications
Filter Property Value
actuating force 4.9 N
Latching switching function On-On
Design straight
Breaking capacity 3 (0.5) A/125 VAC, 250 VAC
Actuator hinge lever
Logistics
Property Value
Country of origin JP
Customs tariff number 85365080
Compliance
Property Value
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
