DG13-B1RA | ZF Switches and Sensors

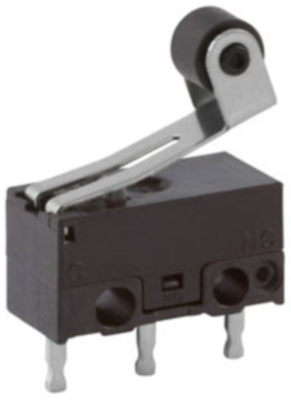

Subminiature snap-action switch, On-On, PCB connection, roller lever, 0.6 N, 3 A/125 VAC, 2A/30 VDC, IP40, DG13-B1RA

Order No.: 13G1112

EAN: 4099889212617

MPN:

DG13-B1RA

Image may differ

Key Specification:

Latching switching function On-On

Actuator roller lever

actuating force 0.6 N

Switching point 12.4 mm ±0.5 mm

Connection PCB connection

Download Datasheet Technical specifications

This item is no longer available.

As an alternative, we recommend the following item:

Subminiature snap-action switch, On-On, roller lever, 4.9 N, 3 (0.5) A/125 VAC, 250 VAC, DGE3-E7RD

Order No.: 13G1187

Manufacturer: ZF Switches and Sensors

per pc. 2.0468 € *

Go to product

*incl. VAT plus shipping costs

Description

Subminiature snap-action switches series DG, type Cherry DG13-.

Miniature version for extra-low voltage applications and PCB mounting with 5.08 mm grid; Contact type: changeover contact, breaking capacity to UL and CSA: 2.0 A/30 VDC, 3.0 A/125 VAC, contacts: AgNi, actuator color: black. Operating temperatures: –25 to +85 °C. Connections: CuZn, silver-plated. Materials: actuator: PBT (UL 94 VDC0), socket: PPHS (UL 94 VDC0). Certifications: UL, CSA. The length of the raised auxiliary actuator is measured from the center of the mounting hole.

With roll, straight, 1.4-mm length measured from the center of the fastening hole, type DG13-.

Switch actuating force: maximum 45 cN. Action point: 12.4 mm (±0.5). Pretravel: maximum 1.5 mm. Overtravel: minimum 0.55 mm. Travel difference: maximum 0.5 mm. Home position: maximum 13.9 mm.

Technical attributes (type, connection type): DG13-B1RA, PCB connection at the bottom, straight

Technical specifications

Filter	Property	Value
	Latching switching function	On-On
	Actuator	roller lever
	actuating force	0.6 N
	Switching point	12.4 mm ±0.5 mm
	Connection	PCB connection
	Design	straight
	Shell Material	PPS
	Breaking capacity	3 A/125 VAC, 2A/30 VDC
	Protection class	IP40
