DC3C-A1RB | ZF Switches and Sensors

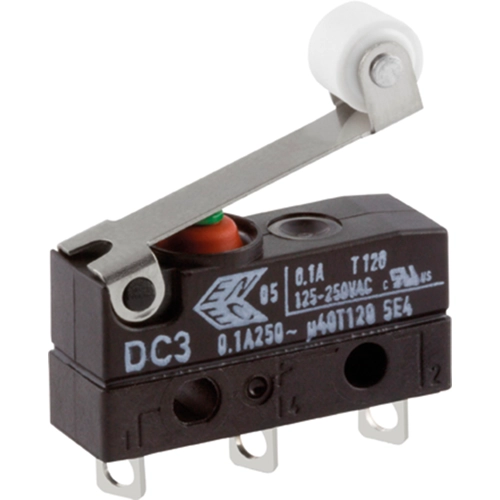

Subminiature snap-action switch, On-On, solder connection, roller lever, 0.9 N, 0.1 (0.1) A/125 VAC, 250 VAC, IP67, DC3C-A1RB
Order No.: 13G1354
MPN:
DC3C-A1RB
Unit Price (€ / pc.)
3.2249 € *
Available: 160 pcs.
Subminiature snap-action switches series DB, type Cherry DC3C-.
Sealed switch with high switching accuracy; Switching action: CO. Breaking power: 0.1 A/250 VAC (EN 61058), 0.1 A 125/250 VAC (UL 1054). Contacts: AgNi. Leakage current resistance: PTI 175. Connections: CuZn, silver-plated. Electrical useful life: 50,000 switching cycles. Degree of protection: IP 67.
With 2.5 mm auxiliary roll actuator, type DC3C-.
Switch actuating force: maximum 90 cN. Action point: 15.8 mm (±1.3). Pretravel: maximum 4.5 mm. Overtravel: minimum 1.5 mm. Travel difference: maximum 0.5 mm. Home position: maximum 19 mm.
Technical attributes (type, termination, operating temperatures, certifications): DC3C-A1RB, solder terminals, –40 to +120 °C, ENEC, UL, CSA
Technical specifications
| Latching switching function | On-On | |
| Actuator | roller lever | |
| actuating force | 0.9 N | |
| Switching point | 15.8 mm ±1.3 mm | |
| Connection | solder connection | |
| Design | straight | |
| Shell Material | PBT/PET | |
| Breaking capacity | 0.1 (0.1) A/125 VAC, 250 VAC | |
| Protection class | IP67 |
Download
Logistics
| Customs tariff number | 85365080 |
| Country of origin | DE |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
