DC3A-H1AA | ZF Switches and Sensors
Subminiature snap-action switch, PCB connection, 2 N, 0.1 A/250 VAC, IP67, DC3A-H1AA
Unit Price (€ / pc.)
2.38 € *
Standard delivery time from the manufacturer is: 22 Weeks

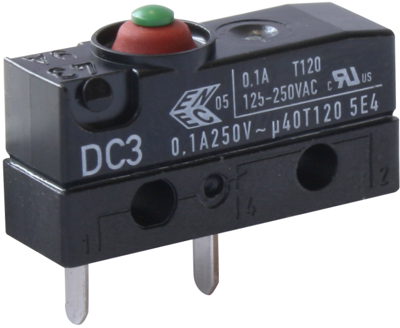

Sealed Subminiature Snap Switch, DC3A-H1AA, ZF Switches and Sensors
Single pole sealed subminiature snap switch
Features
- Precise snap action switch
- Long life coil spring mechanism
- Different mounting options (location posts, mounting holes)
- Protection class: IP67
- Various aux actuators (also for retrofitting, two mounting points)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Shell Material | PBT/PET | |
| actuating force | 2 N | |
| Design | straight | |
| Connection | PCB connection | |
| Protection class | IP67 | |
| Switching point | 8.4 mm ±0.3 mm | |
| Breaking capacity | 0.1 A/250 VAC |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85365007 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
