D449-V3AA | ZF Switches and Sensors

Name: Miniature snap-action switche, On-On, plug-in connection, pin plunger, 0.75 N, 10 (3) A, 125/250 VAC, IP40, D449-V3AA
Brand: ZF Switches and Sensors
SKU: 13G1128
Availability: InStock

Miniature snap-action switche, On-On, plug-in connection, pin plunger, 0.75 N, 10 (3) A, 125/250 VAC, IP40, D449-V3AA

Order No.: 13G1128

MPN:

D449-V3AA

SWITCH SNAP ACTION

Series: D4

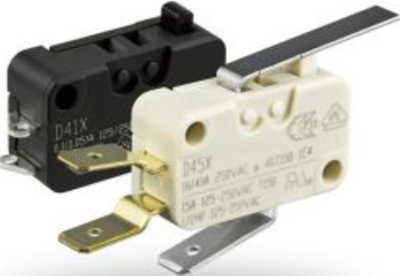

D449-V3AA ZF Switches and Sensors Snap Action Switches Image 1

D449-V3AA ZF Switches and Sensors Snap Action Switches Image 2

Image may differ

Key Specification:

Latching switching function On-On

Actuator pin plunger

actuating force 0.75 N

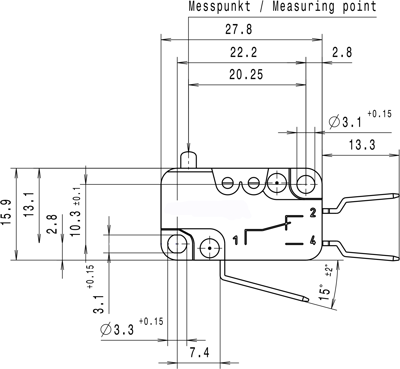

Switching point 14.7 mm ±0.5 mm

Connection plug-in connection

Download Datasheet Technical specifications

Unit Price (€ / pc.)

1.071 € *

Available in 5 Days: 3,021 pcs. - if ordered today

Total Price:

267.75 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

Technical specifications

Filter	Property	Value
	actuating force	0.75 N
	Protection class	IP40
	Latching switching function	On-On
	Shell Material	PA6
	Breaking capacity	10 (3) A, 125/250 VAC
	Connection	plug-in connection
	Actuator	pin plunger
	Switching point	14.7 mm ±0.5 mm
