MP102103 | ZF Switches and Sensors

Hall Sensor MP100701

Order No.: 28G7306
EAN: 4099889434620
MPN:
MP102103
Series: MP
ZF Switches and Sensors

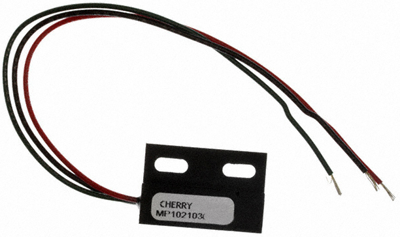

MP102103 ZF Switches and Sensors Hall Effect Sensors Image 1

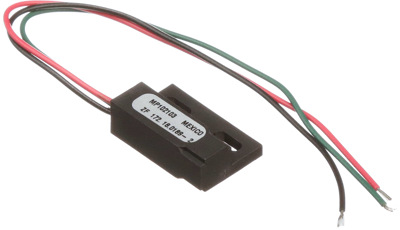

MP102103 ZF Switches and Sensors Hall Effect Sensors Image 2

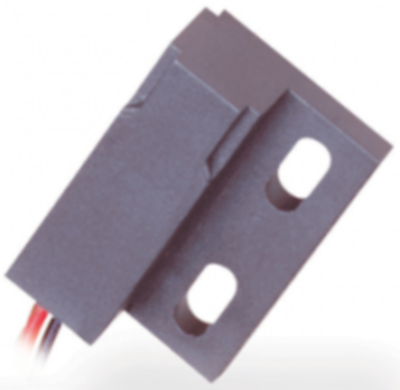

MP102103 ZF Switches and Sensors Hall Effect Sensors Image 3
Image may differ
Unit Price (€ / pc.)
9.1392 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
9.14 € *
*incl. VAT plus shipping costs
**Subject to prior sale
100 pcs.
9.1392 €

Hall-effect position sensors, type ZF Switches and Sensors MP102103.

Unipolar, stable output signal across the entire application temperature range. Housing with mounting flange; Operating voltage: 4.5 to 24 VDC. Output current: max. 20 mA. Input voltage: max. 30 VDC. Termination: AWG24 cable, 314 mm. Degree of protection: IP 67. Operating temperatures: –40 to +85 °C.

Type: MP102103, Hall-effect position sensor

Technical specifications
Version hall effect position sensor
Output current 20 mA
max. operating temperature 85 °C
min. operating temperature -40 °C
Assembly Flanschmontage
Voltage 4.5-24 V
Logistics
Country of origin MX
Original Packaging Bar with 100 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
