MP101302 | ZF Switches and Sensors

Hall effect position sensor, 25 mA, 5 V, 24 V

Order No.: 28G7302
EAN: 4099889434613
MPN:
MP101302
Series: MP

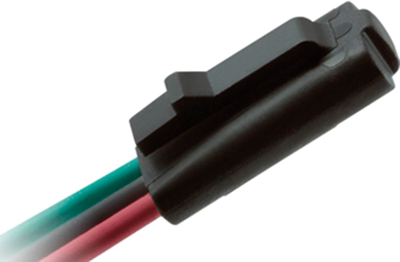

MP101302 ZF Switches and Sensors Hall Effect Sensors
Image may differ
Unit Price (€ / pc.)
6.7354 € *
Available in 5 Days: 600 pcs. - if ordered today
Total Price:
673.54 € *
Price list
Quantity
Price per unit*
100 pcs.
6.7354 €
300 pcs.
6.2237 €
500 pcs.
5.8310 €
1000 pcs.
5.3074 €
*incl. VAT plus shipping costs
Subject to prior sale

Magnetic Proximity Sensor, MP101302, ZF Switches and Sensors

Hall-effect position sensor with convenient snap-fit mounting and magnetic fields generated by permanent magnets. It provides a sinking current output.

Features

  • Solid state reliability
  • Stable output over operating temperature range
  • Open collector (NPN) output can be used with bipolar or CMOS logic circuits with suitable pull-up resistor
  • South pole sensitive
  • Unipolar device
  • RoHS compliant

Applications

  • Door position und interlock
  • Limit switch
  • Flow/speed
  • Home security
  • Pedal switch
Technical specifications
Filter Property Value
Voltage 5-24 V
min. operating temperature -40 °C
Assembly snap-in mounting
max. operating temperature 125 °C
Version hall effect position sensor
Output current 25 mA
Logistics
Property Value
Country of origin MX
Original Packaging Ammopack with 100 pieces
Customs tariff number 85365019
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
