NPL100-12 | Yuasa
Lead-battery, 6 V, 100 Ah, 407 x 172 x 240 mm, internal thread M10, NPL100-12
Unit Price (€ / pc.)
274.057 € *
Standard delivery time from the manufacturer is: On Request

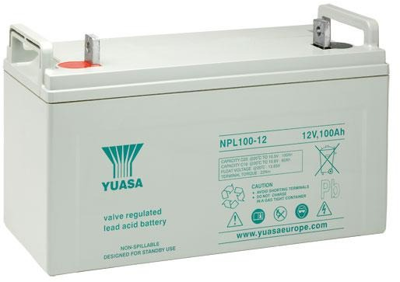

VRLA rechargeable battery, NPL100-12, Yuasa
The NPL100-12 general purpose VRLA battery is made of Absorbed Glass Mat construction with no free acid. This product has a good recovery from deep discharge and it enables operation in any orientation (excluding continuous inverted use).
Features
- Gas recombination
- Compliant with IEC60896-21+22
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Technology | lead | |
| Rated voltage | 6 V | |
| Nominal capacity | 100 Ah | |
| Length | 407 mm | |
| Width | 172 mm | |
| Height | 240 mm | |
| Weight | 39 kg | |
| Connection | internal thread M10 | |
| min. operating temperature | -20 °C | |
| max. operating temperature | 50 °C | |
| Usage | telecommunications, UPS, emergency lighting, security and fire protection |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85072080 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | not_relevant |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
