MF0207FTE52-100R | Yageo

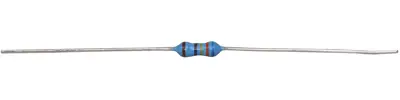

Metal film resistor, 100 Ω, 0.6 W, ±1 %, MF0207FTE52-100R
Unit Price (€ / pc.)
0.0571 € *
Available: 30,900 pcs.
Available in 4 Days: 175,000 pcs. - if ordered today
Total Price:
0.06 € *
Price list
Quantity
Price per unit*
1 pcs.
0.0571 €
10 pcs.
0.0500 €
100 pcs.
0.0357 €
300 pcs.
0.0202 €
1000 pcs.
0.0143 €
*incl. VAT plus shipping costs
Subject to prior sale
Metal film resistor, MF0207FTE52-100R, Yageo
The MF0 Series Metal Film Professional Resistors are manufactured using a vacuum sputtering system to deposit multiple layers of mixed metal alloys and passivative materials onto a carefully treated high grade ceramic substrate. After a helical groove has been cut in the resistive layer, tinned connecting leads of electrolytic copper are welded to the end-caps. The resistors are coated with layers of blue color lacquer.
Features
- Power Rating 0.6 Watt
- Resistance Tolerance ±1%
- T.C.R. ±50ppm/°C
Technical specifications
| Filter | Property | Value |
|---|---|---|
| ohmic resistance | 100 Ω | |
| diameter | 2.4 mm | |
| Isolation voltage | 500 V | |
| max. operating temperature | 155 °C | |
| Length | 6.3 mm | |
| min. operating temperature | -55 °C | |
| Assembly | THT | |
| Design | axial | |
| Power | 0.6 W | |
| Temperature coefficient | ±50 ppm/K | |
| Version | metal film resistor | |
| Tolerance | ±1 % |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85332100 |
| Original Packaging | Reel with 5,000 pieces |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
