RL0805FR-07W LODP 0R33 | Yageo
Resistor, thick film, SMD 0805 (2012), 330 mΩ, 0.25 W, ±1 %, RL0805FR-07W LODP 0R33
Unit Price (€ / pc.)
0.0488 € *
Available in 4 Days: 5,000 pcs. - if ordered today
SMD thick-film resistors, size 0805, 0.125 W or 0.25 W, tolerance 1.0 %, type Yageo/Phycomp RL0805.
Low resistance values
Double power with 0.25 W.
Technical specifications
| Technology | thick film | |
| ohmic resistance | 330 mΩ | |
| Temperature coefficient | ±600 ppm/K | |

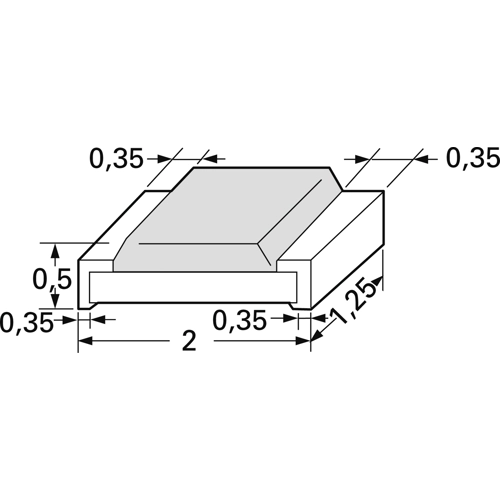

| Height | 0.5 mm | |
| Width | 1.25 mm | |
| min. operating temperature | -55 °C | |
| Length | 2 mm | |
| Design | SMD 0805 (2012) | |
| Power | 0.25 W | |
| Tolerance | ±1 % | |
| max. operating temperature | 125 °C |
Download
Logistics
| Customs tariff number | 85332100 |
| Country of origin | CN |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
