RC2010JK-071R8L | Yageo
Resistor, thick film, SMD 2010 (5025), 1.8 Ω, 0.75 W, ±5 %, RC2010JK-071R8L
Unit Price (€ / pc.)
0.0809 € *
Available in 4 Days: 8,000 pcs. - if ordered today
SMD thick-film resistors, size 2010, 0.75 W, tolerance 5.0 %, type Yageo/Phycomp RC2010.
Rated load at +70 °C: 0.75 W. Operating voltage: max. 200 V. Temperature coefficient (TC): ±100 (1R0 to 8R2 ±200). Insulation resistance: min. 10 Gohm. Operating temperatures: –55 to +155 °C. Sliding scale prices are valid exclusively for the quantity per resistance value ordered.
Type: 1R8
Technical specifications
| Filter | Property | Value |
|---|---|---|
| min. operating temperature | -55 °C | |
| max. operating temperature | 155 °C | |

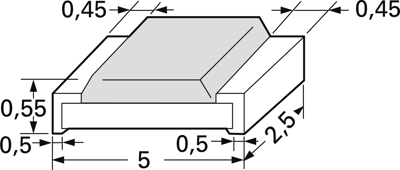

| Height | 0.55 mm | |
| Tolerance | ±5 % | |
| Width | 2.5 mm | |
| ohmic resistance | 1.8 Ω | |
| Power | 0.75 W | |
| Length | 5 mm | |
| Temperature coefficient | ±200 ppm/K | |
| Design | SMD 2010 (5025) | |
| Technology | thick film |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 4,000 pieces |
| Customs tariff number | 85332100 |
| Country of origin | QU |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
