RC1206FR-07680KL | Yageo

Name: Resistor, thick film, SMD 1206 (3216), 680 kΩ, 0.25 W, ±1 %, RC1206FR-07680KL
Brand: Yageo
SKU: 11E632
Price: 0.03 EUR
Availability: OutOfStock

Resistor, thick film, SMD 1206 (3216), 680 kΩ, 0.25 W, ±1 %, RC1206FR-07680KL

Order No.: 11E632

EAN: 4099879206909

MPN:

RC1206FR-07680KL

Series: RC

Image may differ

Key Specification:

ohmic resistance 680 kΩ

Tolerance ±1 %

Power 0.25 W

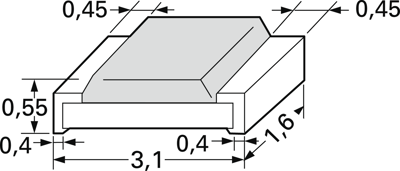

Design SMD 1206 (3216)

Show 116 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.0333 € *

Available: 0 pcs.

Available in 4 Days: 61,241 pcs.

Leadtime: 1 Week **

Add to Cart

Total Price:

0.03 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

SMD thick-film resistors, size 1206, 0.25 W, tolerance 1.0 % or 5.0 %, type Yageo/Phycomp RC1206.

For professional applications

With 1.0 % tolerance, type RC1206.

Download

Technical Data Sheet - EN Technical Data Sheet

Declaration of Conformity - EN Declaration of Conformity

Declaration of Conformity - DE Declaration of Conformity

Logistics

Country of origin	CN
Customs tariff number	85332100
Original Packaging	Reel with 5,000 pieces

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	Yes

Variations

1 item in 116 variations
