RC1206FR-0730KL | Yageo

Name: Resistor, thick film, SMD 1206 (3216), 30 kΩ, 0.25 W, ±1 %, RC1206FR-0730KL
Brand: Yageo
SKU: 11E566
Price: 0.01 EUR
Availability: InStock

Resistor, thick film, SMD 1206 (3216), 30 kΩ, 0.25 W, ±1 %, RC1206FR-0730KL

Order No.: 11E566

EAN: 4099879206589

MPN:

RC1206FR-0730KL

Series: RC

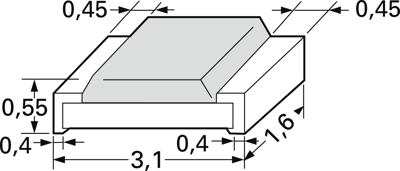

Image may differ

Key Specification:

ohmic resistance 30 kΩ

Tolerance ±1 %

Power 0.25 W

Design SMD 1206 (3216)

Show 116 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.0131 € *

Available: 4,337 pcs.

Available in 4 Days: 15,000 pcs.

Leadtime: 1 Week **

Total Price:

0.01 € *

Price list

Quantity

Price per unit*

1 pcs.

0.0131 €

10 pcs.

0.0096 €

100 pcs.

0.0084 €

500 pcs.

0.0073 €

1000 pcs.

0.0061 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

SMD-Thick film resistor, RC1206FR07-30K, Phycomp

Features

Halogen Free Epoxy
RoHS compliant
Reducing environmentally hazardous wastes
High component and equipment reliability
Saving of PCB space

Download

Technical Data Sheet - EN Technical Data Sheet

Declaration of Conformity - EN Declaration of Conformity

Product Change Notification - EN Product Change Notification

Declaration of Conformity - DE Declaration of Conformity

Logistics

Country of origin	CN
Customs tariff number	85332100
Original Packaging	Reel with 5,000 pieces

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	Yes

Variations

1 item in 116 variations
