RC0603FR-07221RL | Yageo

Name: Resistor, thick film, SMD 0603 (1608), 221 Ω, 0.1 W, ±1 %, RC0603FR-07221RL
Brand: Yageo
SKU: 26E7050
Price: 0.01 EUR
Availability: OutOfStock

Resistor, thick film, SMD 0603 (1608), 221 Ω, 0.1 W, ±1 %, RC0603FR-07221RL

Order No.: 26E7050

EAN: 4099879211606

MPN:

RC0603FR-07221RL

Series: RC

Image may differ

Key Specification:

ohmic resistance 221 Ω

Tolerance ±1 %

Power 0.1 W

Design SMD 0603 (1608)

Show 166 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.0102 € *

Available: 0 pcs.

Available in 4 Days: 48,500 pcs.

Leadtime: 1 Week **

Add to Cart

Total Price:

0.01 € *

*incl. VAT plus shipping costs

**Subject to prior sale

5000 pcs.

0.0102 €

Description

Technical specifications

Description

SMD thick-film resistors, size 0603, 0.1 W, tolerance 1.0 % or 5.0 %, type Yageo/Phycomp RC0603.

With 1.0 % tolerance, type RC0603.

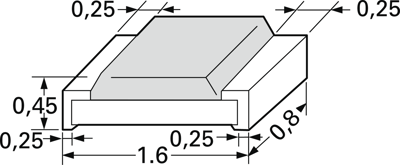

Technical specifications

	ohmic resistance	221 Ω
	Design	SMD 0603 (1608)
	Width	0.8 mm
	Height	0.45 mm
	Length	1.6 mm
	Power	0.1 W
	max. operating temperature	155 °C
	min. operating temperature	-55 °C
	Tolerance	±1 %
	Technology	thick film
	Temperature coefficient	±100 ppm/K

Show similar products 0

Download

Technical Data Sheet - EN Technical Data Sheet

Declaration of Conformity - EN Declaration of Conformity

Declaration of Conformity - DE Declaration of Conformity

Logistics

Country of origin	CN
Customs tariff number	85332100
Original Packaging	Reel with 5,000 pieces

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	Yes
