YC164-JR-073K3L | Yageo
Resistor network, SMD 1206, 3.3 kΩ, 0.063 W, ±5 %, 4 resistors, YC164-JR-073K3L
Unit Price (€ / pc.)
0.0500 € *
Available: 930 pcs.
Available in 4 Days: 5,000 pcs. - if ordered today
Total Price:
5.00 € *
Price list
Quantity
Price per unit*
100 pcs.
0.0500 €
300 pcs.
0.0309 €
1000 pcs.
0.0214 €
3000 pcs.
0.0178 €
10000 pcs.
0.0155 €
*incl. VAT plus shipping costs
Subject to prior sale

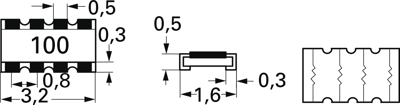

SMD thickfilm resistance networks, type Yageo YC164.
4 independent resistors of the same value and with convex connections
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Power | 0.063 W | |
| Number of resistors | 4 | |
| Temperature coefficient | ±200 ppm/°C | |
| max. operating temperature | 155 °C | |
| Tolerance | ±5 % | |
| Length | 3.2 mm | |
| Height | 0.6 mm | |
| Assembly | SMD | |
| Width | 1.6 mm | |
| Enclosure | SMD 1206 | |
| ohmic resistance | 3.3 kΩ |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Reel with 5,000 pieces |
| Customs tariff number | 85331000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
