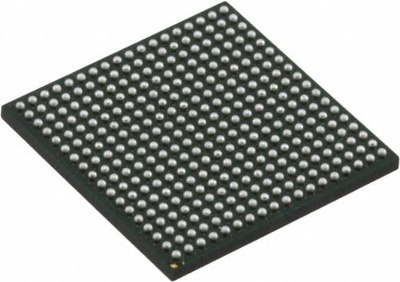

XA7K160T-1FFG676Q | Xilinx

Field Programmable Gate Array, XA7K160T-1FFG676Q, Xilinx

The Xilinx XA Kintex-7 (Automotive) FPGA is optimized for performance and power for high-volume automotive applications. Built on a state-of-the-art, high-performance, low-power (HPL), 28 nm, high-k metal gate (HKMG) process technology, the 7 series FPGA enables an unparalleled increase in system performance, while consuming 50% less power than the previous generation device to offer a fully programmable alternative to an ASSP or ASIC. The XA Kintex-7 FPGA also offers many high-end features, such as integrated advanced Analog Mixed Signal (AMS) technology. Analog becomes the next level of integration through the seamless implementation of an independent dual 12-bit, 1 MSPS, 17-channel analog-to-digital converter. Most importantly, the XA Kintex-7 FPGA proudly meets the high standards of the automotive grade with a maximum temperature of 125°C.

Features

• Advanced high-performance FPGA logic based on real 6-input lookup table (LUT) technology configurable as distributed memory
• 36 Kb dual-port block RAM with built-in FIFO logic for on-chip data buffering
• Single-ended and differential I/O standards with speeds of up to 1.25 Gb/s
• Powerful clock management tiles (CMT), combining phase-locked loop (PLL) and mixed-m
• Strong automotive-specific third-party ecosystem with IP, development boards, and design services
