XA7A50T-1CSG325Q | Xilinx

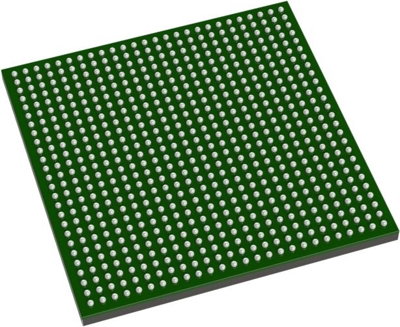

Field Programmable Gate Array, XA7A50T-1CSG325Q, Xilinx

The Xilinx XA Artix-7 (Automotive) FPGA is optimized for the lowest cost and power with small form-factor packaging for high-volume automotive applications. Built on a state-of-the-art high-performance/low-power (HPL) 28 nm high-k metal gate (HKMG) process technology, the XA Artix-7 FPGA redefines low-cost alternatives with more logic per watt. It delivers an unparalleled increase in system performance with 52 Gb/s I/O bandwidth, 100,000 logic cell capacity, 264 GMAC/s DSP, and flexible built-in DDR3 memory interfaces-enabling a new class of high-throughput, low-cost automotive applications.

The XA Artix-7 FPGA also offers many high-end features, such as integrated advanced Analog Mixed Signal (AMS) technology. Analog becomes the next level of integration through the seamless implementation of an independent dual 12-bit, 1 MSPS, 17-channel analog-to-digital converter. Most importantly, the XA Artix-7 FPGA proudly meets the high standards of automotive grade with a maximum temperature of 125°C.

Features

• Advanced high-performance FPGA logic based on real 6-input lookup table (LUT) technology configurable as distributed memory
• 36 Kb dual-port block RAM with built-in FIFO logic for on-chip data buffering
• Single-ended and differential I/O standards with speeds of up to 1.25 Gb/s
• Powerful clock management tiles (CMT), combining phase-locked loop (PLL) and mixed-m
• Strong automotive-specific third-party ecosystem with IP, development boards, and design services
