560112116141 | Würth Elektronik eiSos

Resistor, thick film, SMD 0603 (1608), 4.3 kΩ, 0.1 W, ±1 %, 560112116141

Order No.: 38P5265
EAN: 4099891757984
MPN:
560112116141
Series: WRIS-RSKS

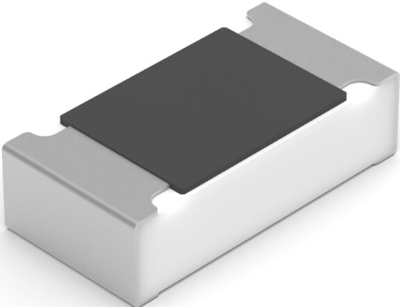

560112116141 Würth Elektronik eiSos SMD Resistors Image 1
560112116141 Würth Elektronik eiSos SMD Resistors Image 2
Image may differ
Unit Price (€ / pc.)
0.1071 € *
Available: 500 pcs.
Available in 5 Days: 28,886 pcs. - if ordered today
Total Price:
0.11 € *
Price list
Quantity
Price per unit*
1 pcs.
0.1071 €
50 pcs.
0.0607 €
500 pcs.
0.0405 €
2500 pcs.
0.0309 €
5000 pcs.
0.0238 €
*incl. VAT plus shipping costs
Subject to prior sale

Resistor, 560112116141, WÜRTH

WRIS-RSKS anti-sulfur thick film resistor.

Technical specifications
Filter Property Value
Temperature coefficient -100/+100 ppm/C
min. operating temperature -55 °C
Power 0.1 W
Design SMD 0603 (1608)
Width 0.8 mm
max. operating temperature 155 °C
Technology thick film
Length 1.6 mm
ohmic resistance 4.3 kΩ
Height 0.45 mm
Tolerance ±1 %
Logistics
Property Value
Customs tariff number 85332100
Country of origin CN
MSL MSL 1
Compliance
Property Value
RoHS conform Yes
Substance description Lead monoxide (lead oxide)
SVHC free No
Date of RoHS guidelines 3/31/15
