560112110209 | Würth Elektronik eiSos

Resistor, thick film, SMD 0402 (1005), 1.8 kΩ, 0.1 W, ±1 %, 560112110209

Order No.: 38P5118
EAN: 4099891756635
MPN:
560112110209
Series: WRIS-RSKS

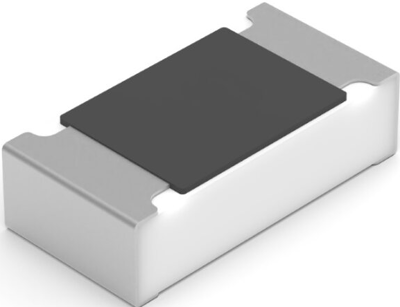

560112110209 Würth Elektronik eiSos SMD Resistors Image 1
560112110209 Würth Elektronik eiSos SMD Resistors Image 2
Image may differ
Unit Price (€ / pc.)
0.1023 € *
Available: 500 pcs.
Available in 5 Days: 10,000 pcs. - if ordered today
Total Price:
0.10 € *
Price list
Quantity
Price per unit*
1 pcs.
0.1023 €
50 pcs.
0.0571 €
500 pcs.
0.0393 €
5000 pcs.
0.0298 €
10000 pcs.
0.0226 €
*incl. VAT plus shipping costs
Subject to prior sale

Resistor, 560112110209, WÜRTH

WRIS-RSKS anti-sulfur thick film resistor.

Technical specifications
Filter Property Value
Length 1 mm
Height 0.35 mm
Design SMD 0402 (1005)
ohmic resistance 1.8 kΩ
Temperature coefficient -100/+100 ppm/C
min. operating temperature -55 °C
max. operating temperature 155 °C
Power 0.1 W
Tolerance ±1 %
Technology thick film
Width 0.5 mm
Logistics
Property Value
Customs tariff number 85332100
Country of origin CN
MSL MSL 1
Compliance
Property Value
Substance description Lead monoxide ]lead(II) oxide]
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
