560112110038 | Würth Elektronik eiSos

Name: Resistor, thick film, SMD 0402 (1005), 12 kΩ, 0.1 W, ±1 %, 560112110038
Brand: Würth Elektronik eiSos
SKU: 38P5106
Price: 0.10 EUR
Availability: InStock

Resistor, thick film, SMD 0402 (1005), 12 kΩ, 0.1 W, ±1 %, 560112110038

Order No.: 38P5106

EAN: 4099891756512

MPN:

560112110038

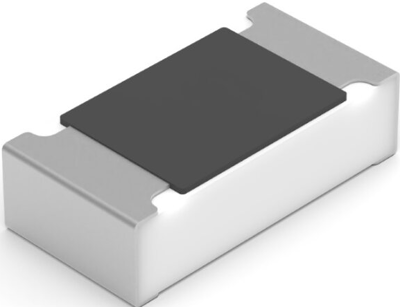

Image may differ

Key Specification:

ohmic resistance 12 kΩ

Tolerance ±1 %

Power 0.1 W

Design SMD 0402 (1005)

Show 103 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.1023 € *

Available: 500 pcs.

Leadtime: On Request **

Total Price:

0.10 € *

Price list

Quantity

Price per unit*

1 pcs.

0.1023 €

50 pcs.

0.0571 €

500 pcs.

0.0393 €

5000 pcs.

0.0298 €

10000 pcs.

0.0226 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Technical specifications

Description

Resistor, 560112110038, WÜRTH

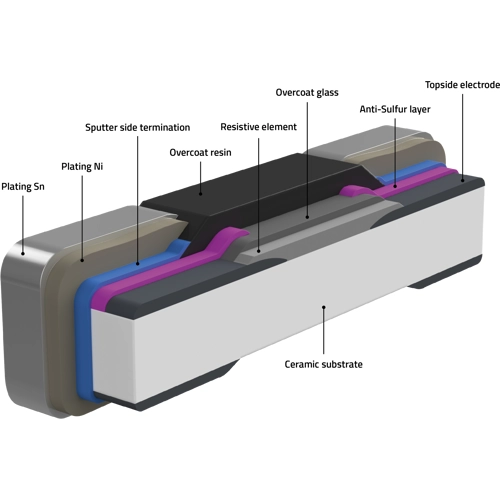

WRIS-RSKS thick film anti-sulfur general purpose.

Technical specifications

	ohmic resistance	12 kΩ
	Design	SMD 0402 (1005)
	Width	0.5 mm
	Height	0.35 mm
	Length	1 mm
	Power	0.1 W
	max. operating temperature	155 °C
	min. operating temperature	-55 °C
	Tolerance	±1 %
	Technology	thick film
	Temperature coefficient	-100/+100 ppm/C

Show similar products 0

Download

Technical Data Sheet - EN Technical Data Sheet

Declaration of Conformity - EN Declaration of Conformity

Declaration of Conformity - DE Declaration of Conformity

Logistics

Country of origin	CN
Customs tariff number	85332100

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	No
Substance description	Lead monoxide ]lead(II) oxide]
