560112110001 | Würth Elektronik eiSos

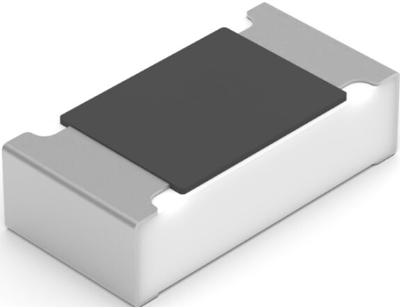

Resistor, thick film, SMD 0402 (1005), 62.5 mW, 560112110001
Unit Price (€ / pc.)
0.1023 € *
Available: 500 pcs.
Available in 5 Days: 108,504 pcs. - if ordered today
Total Price:
0.10 € *
Price list
Quantity
Price per unit*
1 pcs.
0.1023 €
50 pcs.
0.0571 €
500 pcs.
0.0393 €
5000 pcs.
0.0298 €
10000 pcs.
0.0226 €
*incl. VAT plus shipping costs
Subject to prior sale
Resistor, 560112110001, WÜRTH
WRIS-RSKS anti-sulfur thick film resistor jumper.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 0.35 mm | |
| max. operating temperature | 155 °C | |
| Width | 0.5 mm | |
| Technology | thick film | |
| Power | 62.5 mW | |
| min. operating temperature | -55 °C | |
| Design | SMD 0402 (1005) | |
| Length | 1 mm |
Download
Logistics
| Property | Value |
|---|---|
| MSL | MSL 1 |
| Country of origin | CN |
| Customs tariff number | 85332100 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead monoxide ]lead(II) oxide] |
| RoHS conform | Yes |
