875585845002 | Würth Elektronik eiSos

Polymer hybrid aluminum electrolytic capacitor, SMD, 22 µF, 63 V, ±20 %, 875585845002

Order No.: 10D5819
EAN: 4099879134653
MPN:
875585845002
Series: WCAP-HSAH

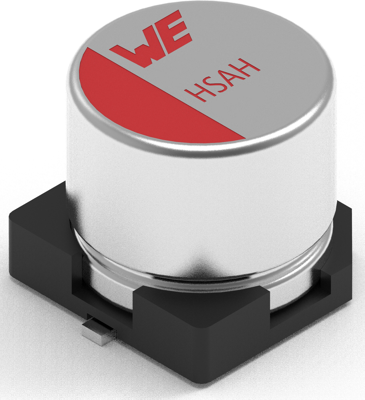

875585845002 Würth Elektronik eiSos Polymer and Hybrid Capacitors
Image may differ
Unit Price (€ / pc.)
1.7374 € *
Available: 50 pcs.
Total Price:
1.74 € *
Price list
Quantity
Price per unit*
1 pcs.
1.7374 €
50 pcs.
1.4280 €
225 pcs.
1.2019 €
450 pcs.
1.0353 €
900 pcs.
0.8806 €
*incl. VAT plus shipping costs
Subject to prior sale

Characteristics

  • Lifespan: 4000 hours @ +125 °C
  • High operating temperature product series
  • High ripple current characteristics
  • High stability over the temperature range
  • Low ESR
  • Low leakage current
  • Operating temperature: -55°C to +125°C

Application:

  • Industry and telecommunication
  • Smoothing
  • e.g. Servo inverter, air conditioner, industrial power supply, security camera, base station
Technical specifications
Filter Property Value
ESR (Equivalent Series Resistance) 80 mΩ
Ripple current 900 mA
Length 7.7 mm
max. operating temperature 125 °C
diameter 6.3 mm
Capacity 22 µF
Rated voltage (DC) 63 V
Tolerance ±20 %
min. operating temperature -55 °C
Design SMD
Logistics
Property Value
MSL MSL 1
Original Packaging Reel with 900 pieces
Customs tariff number 85322500
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
