691361100006 | Würth Elektronik eiSos

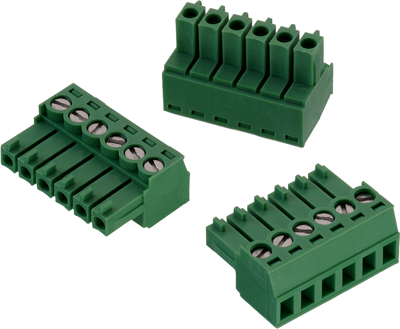

Socket header, 6 pole, pitch 3.5 mm, straight, green, 691361100006
Unit Price (€ / pc.)
4.2126 € *
Available: 84 pcs.
Available in 5 Days: 44,310 pcs. - if ordered today
Total Price:
4.21 € *
Price list
Quantity
Price per unit*
1 pcs.
4.2126 €
10 pcs.
3.7842 €
50 pcs.
3.2606 €
100 pcs.
2.9155 €
250 pcs.
2.7489 €
*incl. VAT plus shipping costs
Subject to prior sale
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 6 pole | |
| Connection plating | galvanized | |
| Number of rows | 1 | |
| Version | terminal block | |
| Additional parts | equipped | |
| Grid | 3.5 mm | |
| contact surface | tin/nickel plated | |
| Rated voltage | 300 V | |
| Colour | green | |
| Rated current | 10 A | |
| Connection | screw connection | |
| Contact type | socket | |
| Orientation | straight |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | CN |
| MSL | MSL 1 |
| Original Packaging | Carton with 190 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
