690157001072 | Würth Elektronik eiSos

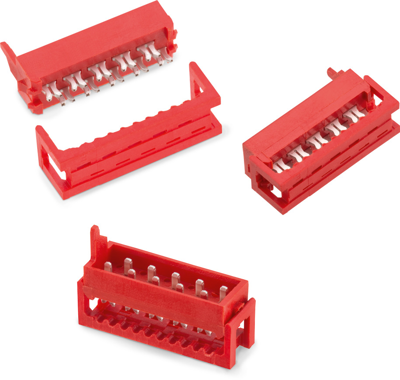

Insulation displacement connector, 10 pole, pitch 2.54 mm, straight, red, 690157001072
Unit Price (€ / pc.)
1.1186 € *
Available: 36 pcs.
Available in 5 Days: 569,795 pcs. - if ordered today
Total Price:
1.12 € *
Price list
Quantity
Price per unit*
1 pcs.
1.1186 €
10 pcs.
1.0948 €
100 pcs.
1.0591 €
250 pcs.
1.0115 €
500 pcs.
0.9044 €
*incl. VAT plus shipping costs
Subject to prior sale
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.54 mm | |
| Connection | IDC connection | |
| Version | pin header | |
| Orientation | straight | |
| Pin number | 10 pole | |
| Additional parts | equipped | |
| Contact type | pin | |
| contact surface | tin/nickel plated | |
| Number of rows | 2 | |
| Colour | red | |
| Rated current | 1 A | |
| Rated voltage | 250 V |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bar with 36 pieces |
| Customs tariff number | 85366930 |
| MSL | MSL 1 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
