690157000872 | Würth Elektronik eiSos

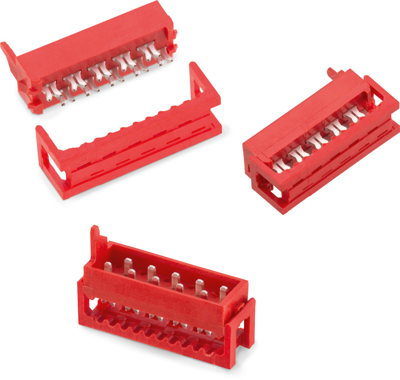

Insulation displacement connector, 8 pole, pitch 2.54 mm, straight, red, 690157000872
Unit Price (€ / pc.)
1.0472 € *
Available: 46 pcs.
Available in 5 Days: 121,931 pcs. - if ordered today
Total Price:
1.05 € *
Price list
Quantity
Price per unit*
1 pcs.
1.0472 €
10 pcs.
1.0353 €
100 pcs.
0.9877 €
250 pcs.
0.9520 €
500 pcs.
0.8568 €
*incl. VAT plus shipping costs
Subject to prior sale
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Additional parts | equipped | |
| Grid | 2.54 mm | |
| Connection | IDC connection | |
| Colour | red | |
| Orientation | straight | |
| Contact type | pin | |
| Rated current | 1 A | |
| Rated voltage | 250 V | |
| Number of rows | 2 | |
| contact surface | tin/nickel plated | |
| Version | pin header | |
| Pin number | 8 pole |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366930 |
| MSL | MSL 1 |
| Country of origin | CN |
| Original Packaging | Bar with 42 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
