490107670812 | Würth Elektronik eiSos

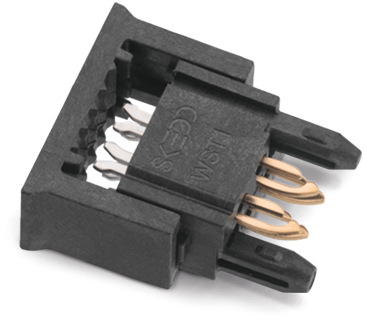

Insulation displacement connector, 8 pole, pitch 2.54 mm, straight, black, 490107670812
Unit Price (€ / pc.)
2.2967 € *
Available: 45 pcs.
Available in 5 Days: 7,961 pcs. - if ordered today
Total Price:
2.30 € *
Price list
Quantity
Price per unit*
1 pcs.
2.2967 €
10 pcs.
2.1539 €
29 pcs.
1.8445 €
58 pcs.
1.6898 €
116 pcs.
1.5351 €
*incl. VAT plus shipping costs
Subject to prior sale
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Additional parts | equipped | |
| Number of rows | 2 | |
| Connection | solder pin | |
| Rated voltage | 100 V | |
| Orientation | straight | |
| contact surface | gold-plated/tin-plated | |
| Version | insulation displacement connector | |
| Pin number | 8 pole | |
| Contact type | pin | |
| Grid | 2.54 mm | |
| Rated current | 1 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | IT |
| MSL | MSL 1 |
| Original Packaging | Bar with 29 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
