18024215401H | Würth Elektronik eiSos

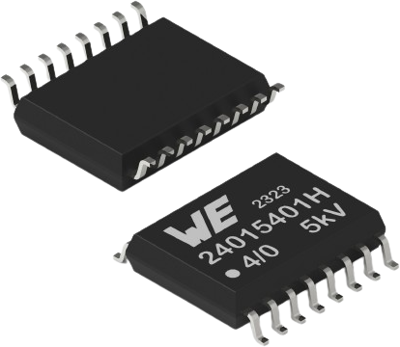

Digital isolator, SOIC-16, Würth Elektronik eiSos 18024215401H

Order No.: 67S0024
EAN: 4099891753221
MPN:
18024215401H
Würth Elektronik eiSos
18024215401H Würth Elektronik eiSos Logic Devices
Image may differ
Print
Key Specification:
Product type digital isolator
Enclosure SOIC-16
Assembly SMD
Number of channels 4
Show 10 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
11.0408 € *
Available: 100 pcs.
Available in 5 Days: 8,462 pcs. - if ordered today
Total Price:
11.04 € *
Price list
Quantity
Price per unit*
1 pcs.
11.0408 €
10 pcs.
9.9365 €
50 pcs.
9.3843 €
100 pcs.
8.8322 €
500 pcs.
8.2800 €
*incl. VAT plus shipping costs
Subject to prior sale
Description
Technical specifications
Download
Logistics
Compliance
Variations

4 Channel digital isolator, 18024215401H, Würth Elektronik eiSos

The 18024215401H is a 4 channel digital isolator that includes an integrated isolated DC/DC power module. A single external power supply is necessary to power both the primary side channels and the integrated isolated power supply. The integrated power supply generates the required isolated secondary supply voltage. The integrated power module has integrated protection systems that guard against thermal overstress with thermal shutdown and protect against electrical damage using overcurrent, short-circuit and undervoltage circuitry.

Features

  • Industrial standard package and pin configuration
  • Signal transmission in high-speed applications
  • High level of immunity to system noise

Applications

  • Communication bus isolation
  • Motor control
  • Battery management systems
  • Solar inverters
  • Test and measurement systems
  • Programmable logic controller (PLC) interfaces
Technical specifications
Assembly SMD
Enclosure SOIC-16
min. operating temperature -40 °C
Input voltage 5.5 V
Data transmission rate 100000000 mb/s
max. operating temperature 125 °C
Number of channels 4
Surge blocking voltage V RMS 5000 V
Product type digital isolator
Articles of same specification 0
Logistics
Country of origin CN
Customs tariff number 85423919
Original Packaging Reel with 1 piece
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
