18014215401H | Würth Elektronik eiSos

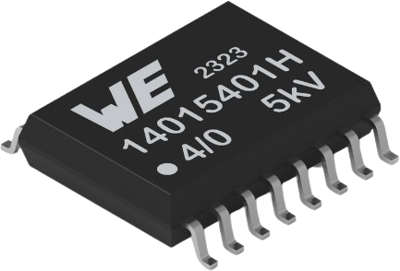

Capacitive Digital Isolator, SOIC-16, Würth Elektronik eiSos 18014215401H
Order No.: 67S0020
EAN: 4099891753184
MPN:
18014215401H
Unit Price (€ / pc.)
4.9325 € *
Available: 50 pcs.
Available in 5 Days: 12,446 pcs. - if ordered today
Total Price:
4.93 € *
Price list
Quantity
Price per unit*
1 pcs.
4.9325 €
10 pcs.
4.4399 €
50 pcs.
4.1936 €
100 pcs.
3.9460 €
500 pcs.
3.6997 €
*incl. VAT plus shipping costs
Subject to prior sale
4 Channel digital isolator, 18014215401H, Würth Elektronik eiSos
The 18014215401H is a 4 channel digital isolator that provides capacitive isolation between the primary and secondary sides of the device. The digital isolator requires two supplies, one for the primary side and one for the secondary side.
Features
- Industrial standard package and pin configuration
- Signal transmission in high-speed applications
- High level of immunity to system noise
Applications
- Communication bus isolation
- Motor control
- Battery management systems
- Solar inverters
- Test and measurement systems
- Programmable logic controller (PLC) interfaces
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | SMD | |
| max. operating temperature | 125 °C | |
| Number of channels | 4 | |
| Product type | Capacitive Digital Isolator | |
| Enclosure | SOIC-16 | |
| Surge blocking voltage V RMS | 5000 V | |
| Data transmission rate | 150000000 mb/s | |
| min. operating temperature | -40 °C | |
| Input voltage | 5.5 V |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 1 piece |
| Country of origin | CN |
| Customs tariff number | 85423919 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
