150302GS73100 | Würth Elektronik eiSos

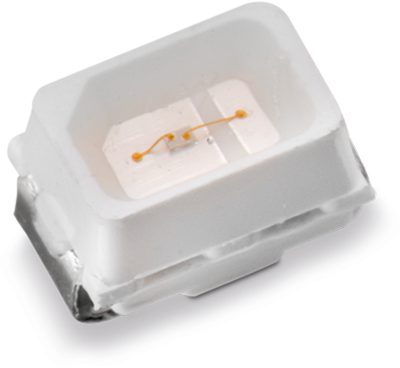

LED, SMD, 3020, green, 525 nm, 0.8 to 1.2 cd, 120°, 150302GS73100
Unit Price (€ / pc.)
0.2399 € *
Available in 5 Days: 116,915 pcs. - if ordered today
Characteristics
- Compact package outline
- Flexibility in design
- High reliability
- No UV/ IR radiation
- Top view LED
Application:
- Signage and indirect illumination
- Flat lamp
- Indicator and backlight in telecommunication
- Consumer application: dash-board, telephone or A/V equipments
- Flat backlight for LCDs, switches and symbols
- Optical indicators
- Indoor and outdoor displays
- Scanner
- Backlight in LCD, cellular phones, switches, keys, displays
- lluminated advertising, panel
- Lighting device: indicator, general lighting
- Camera flash, hand carrier flash
- Coupling into light guides
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Forward Current | 30 mA | |
| Light intensity typ. | 1.2 cd | |
| Wavelength | 525 nm | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C | |
| Radiation angle | 120 ° | |
| Light intensity min. | 0.8 cd | |
| On-State Voltage | 3.9 V | |
| Colour of the LED | green | |
| Width | 2 mm | |
| Enclosure | 3020 | |
| Length | 3 mm | |
| Lens | clear | |
| Assembly | SMD |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 3,000 pieces |
| MSL | MSL 4 |
| Customs tariff number | 85414100 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
