1311610030140 | Würth Elektronik eiSos

Integrated Controller within LEDWL-ICLED ChipIC RGB LED Compact, If=5mA, 80/120/50 mcd

Order No.: 67S4640
EAN: 4099891975357
MPN:
1311610030140
1311610030140 Würth Elektronik eiSos LED Modules

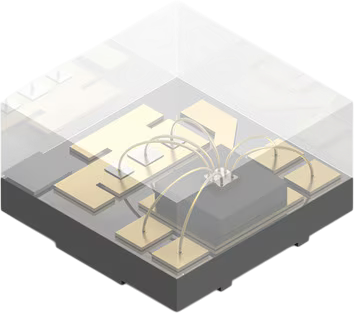

Image may differ
Unit Price (€ / pc.)
1.2150 € *
Available: 25 pcs.
Available in 5 Days: 10,000 pcs. - if ordered today
Total Price:
1.21 € *
Price list
Quantity
Price per unit*
1 pcs.
1.2150 €
10 pcs.
1.1008 €
100 pcs.
1.0056 €
250 pcs.
0.9258 €
500 pcs.
0.8580 €
*incl. VAT plus shipping costs
Subject to prior sale

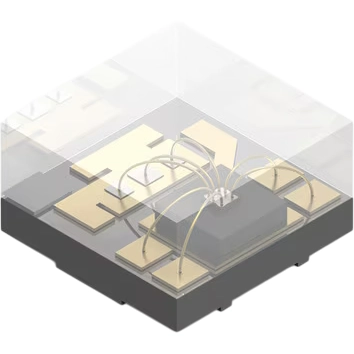

LED with controller, 1311610030140, Würth Elektronik eiSos

The ICLED from Würth Elektronik is a qualified RGB LED with an integrated controller that can be dimmed via PWM signal. The IC ensures a constant current to the three different color chips and is perfect for color mixing solutions, allowing both static and dynamic lighting effects to be realized for a wide range of applications. Thanks to the integrated controller in each ICLED, complex circuits with challenging PCB layouts are no longer necessary. An MCU sends the information of an entire chain of ICLEDs only to the first ICLED in the circuit. This information is retransmitted via a daisy-chain connection to the following ICLED, so that all subsequent components do not require an additional connection to the microcontroller.

Features

  • Compatible with open source libraries such as FastLED
  • Ready to use with pre-programmed IC
  • 0% to 100% digital dimming via command
  • Individual pixel colour and brightness control
  • Full RGB spectrum
  • Standard pin configuration

Applications

  • Signal control system
  • Full-color matrix display
  • Audio and gaming systems
  • Indoor illumination
Technical specifications
Version LED with controller
Length 1.6 mm
Colour RGB
Rated current 17.5 mA
Rated voltage 5.5 V
Assembly SMD
Power 100 mW
Logistics
MSL MSL 3
Customs tariff number 85414100
Country of origin TW
Original Packaging Reel with 1 piece
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
