744824407 | Würth Elektronik eiSos

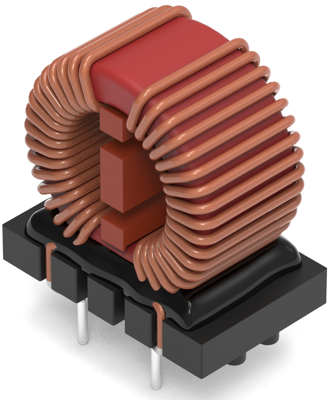

Common mode line choke, vertical, 7 mH, 3.5 A, 744824407
Unit Price (€ / pc.)
6.4141 € *
Available: 23 pcs.
Total Price:
6.41 € *
Price list
Quantity
Price per unit*
1 pcs.
6.4141 €
5 pcs.
5.8310 €
10 pcs.
5.5454 €
25 pcs.
4.7124 €
50 pcs.
4.2721 €
*incl. VAT plus shipping costs
Subject to prior sale
Characteristics
- Broadband filtering due to low capacitance winding technique
- Certified according to IEC 60938-2
- Clima category 40/125/21
- Flammability corresponding to UL 94 V-0
- High suppression of asymmetrical interferences also at low frequency range
- Highest possible current in the smallest case size
- Operating temperature: -40°C to +125°C
- Very compact design
Application:
- Power electronics
- Power line in- and output filter
- Filtering of devices without any ground connection
- Suppression of radio interferences in motors
- Suppression of common mode noise
Technical specifications
| Filter | Property | Value |
|---|---|---|
| DC current | 3.5 A | |
| Tolerance | ±30 % | |
| Design | vertical | |
| Width | 18.5 mm | |
| Height | 33 mm | |
| Inductance | 7 mH | |
| Version | common mode line choke | |
| Length | 27.5 mm | |
| DC resistance | 80 mΩ |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85045000 |
| Country of origin | CN |
| MSL | MSL 1 |
| Original Packaging | Carton with 25 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
