744778270 | Würth Elektronik eiSos

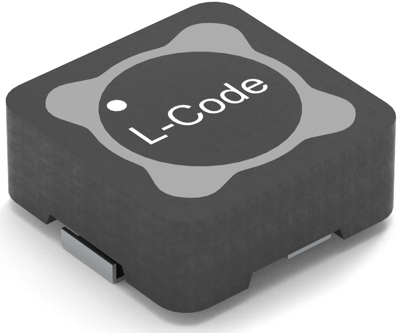

Power choke, SMD 7332, 270 µH, 0.4 A, 744778270

Order No.: 73D1879
EAN: 4099889305852
MPN:
744778270
Series: WE-PD
Würth Elektronik eiSos
default L
Image may differ
Unit Price (€ / pc.)
2.4752 € *
Available: 100 pcs.
Leadtime: On Request **
Total Price:
2.48 € *
Price list
Quantity
Price per unit*
1 pcs.
2.4752 €
10 pcs.
2.3443 €
50 pcs.
2.2967 €
100 pcs.
2.2134 €
500 pcs.
2.1301 €
*incl. VAT plus shipping costs
**Subject to prior sale

Characteristics

  • AEC - Q 200
  • Core material: NiZn/MnZn
  • Highest possible saturation current based on ferrite
  • Operating temperature: -40°C to +125°C
  • Operating temperature: -40°C to +125°C / +150 °C
  • Suitable for switching frequency up to 10 MHz
  • WE-PD Performance: The MnZn core enhances saturation behavior and reduces RDC for maximum efficiency.
  • WE-PD Robust: The plastic base results in better mechanical stability and higher efficiency.
  • WE-PD: In comparison to other manufacturers in the market, it consistently offers low-loss material, tight tolerances, and high saturation performance

Application:

  • ventilation, fan controls
  • Small motor drivers & wiper control systems
  • Car infotainment
  • Switching regulators and DC/DC converter with extremely high efficiency (>95%)
  • Switch mode power supplies from 0.1 W up to 300 W
  • Integrated DC/DC converter
  • Ideal for switch mode power supplies with extreme high efficiency (>95%)
Technical specifications
Version power inductor
Design SMD 7332
Width 7.3 mm
DC current 0.4 A
DC resistance 2.31 Ω
Height 3.2 mm
Inductance 270 µH
Length 7.3 mm
Measuring frequency 5.2 MHz
Saturation current 0.39 A
Tolerance ±20 %
Logistics
Country of origin CN
Customs tariff number 85045000
MSL MSL 1
Original Packaging Reel with 1,000 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Variations
Width
Tolerance
Inductance
DC current
DC resistance
Design
Version
Length
Height
1 item in 48 variations
*incl. VAT plus shipping costs
Item description
Total
Price list
Width
Tolerance
Inductance
DC current
DC resistance
Design
Version
Length
Height
Power choke, SMD 7332, 33 µH, 1.32 A, 7447783330
Order No.:
 73D1894
Manufacturer:
 Würth Elektronik eiSos
Manufacturer SKU:
 7447783330
Available: 50 pcs. Leadtime: On Request **
Total Price: 2.48 € *
1 pcs.
2.4752 €
10 pcs.
2.3443 €
50 pcs.
2.2967 €
100 pcs.
2.2134 €
500 pcs.
2.1301 €
7.4 mm
±20 %
33 µH
1.32 A
165 mΩ
SMD 7332
power inductor
7.3 mm
3.2 mm
Power choke, SMD 7332, 33 µH, 1.22 A, 744778133
Order No.:
 73D1863
Manufacturer:
 Würth Elektronik eiSos
Manufacturer SKU:
 744778133
Available: 50 pcs. Leadtime: On Request **
Total Price: 2.48 € *
1 pcs.
2.4752 €
10 pcs.
2.2967 €
50 pcs.
2.2015 €
100 pcs.
2.1539 €
500 pcs.
2.1301 €
7.3 mm
±20 %
33 µH
1.22 A
240 mΩ
SMD 7332
power inductor
7.3 mm
3.2 mm
Power choke, SMD 7332, 39 µH, 1.03 A, 744778139
Order No.:
 73D1864
Manufacturer:
 Würth Elektronik eiSos
Manufacturer SKU:
 744778139
Available: 50 pcs. Leadtime: On Request **
Total Price: 2.48 € *
1 pcs.
2.4752 €
10 pcs.
2.2967 €
50 pcs.
2.2015 €
100 pcs.
2.1539 €
500 pcs.
2.1301 €
7.3 mm
±20 %
39 µH
1.03 A
320 mΩ
SMD 7332
power inductor
7.3 mm
3.2 mm
Power choke, SMD 7332, 22 µH, 1.75 A, 7447783220
Order No.:
 73D1892
Manufacturer:
 Würth Elektronik eiSos
Manufacturer SKU:
 7447783220
Available: 50 pcs. Leadtime: On Request **
Total Price: 2.48 € *
1 pcs.
2.4752 €
10 pcs.
2.3443 €
50 pcs.
2.2967 €
100 pcs.
2.2134 €
500 pcs.
2.1301 €
7.4 mm
±20 %
22 µH
1.75 A
115 mΩ
SMD 7332
power inductor
7.3 mm
3.2 mm
Power choke, SMD 7332, 27 µH, 1.27 A, 744778127
Order No.:
 73D1862
Manufacturer:
 Würth Elektronik eiSos
Manufacturer SKU:
 744778127
Available: 50 pcs. Leadtime: On Request **
Total Price: 2.48 € *
1 pcs.
2.4752 €
10 pcs.
2.2967 €
50 pcs.
2.2015 €
100 pcs.
2.1539 €
500 pcs.
2.1301 €
7.3 mm
±20 %
27 µH
1.27 A
210 mΩ
SMD 7332
power inductor
7.3 mm
3.2 mm
Power choke, SMD 7332, 3.3 µH, 3.1 A, 744778003
Order No.:
 73D1854
Manufacturer:
 Würth Elektronik eiSos
Manufacturer SKU:
 744778003
Available: 50 pcs. Leadtime: On Request **
Total Price: 2.48 € *
1 pcs.
2.4752 €
10 pcs.
2.2967 €
50 pcs.
2.2015 €
100 pcs.
2.1539 €
500 pcs.
2.1301 €
7.3 mm
±20 %
3.3 µH
3.1 A
32 mΩ
SMD 7332
power inductor
7.3 mm
3.2 mm
Power choke, SMD 7332, 68 µH, 1 A, 7447783680
Order No.:
 73D1898
Manufacturer:
 Würth Elektronik eiSos
Manufacturer SKU:
 7447783680
Available: 50 pcs. Leadtime: On Request **
Total Price: 2.48 € *
1 pcs.
2.4752 €
10 pcs.
2.3443 €
50 pcs.
2.2967 €
100 pcs.
2.2134 €
500 pcs.
2.1301 €
7.4 mm
±20 %
68 µH
1 A
300 mΩ
SMD 7332
power inductor
7.3 mm
3.2 mm
Power choke, SMD 7332, 4.7 µH, 3.3 A, 7447783047
Order No.:
 73D1885
Manufacturer:
 Würth Elektronik eiSos
Manufacturer SKU:
 7447783047
Available: 38 pcs. Leadtime: On Request **
Total Price: 2.48 € *
1 pcs.
2.4752 €
10 pcs.
2.3443 €
50 pcs.
2.2967 €
100 pcs.
2.2134 €
500 pcs.
2.1301 €
7.4 mm
±30 %
4.7 µH
3.3 A
35 mΩ
SMD 7332
power inductor
7.3 mm
3.2 mm
Power choke, SMD 7332, 68 µH, 0.74 A, 744778168
Order No.:
 73D1867
Manufacturer:
 Würth Elektronik eiSos
Manufacturer SKU:
 744778168
Available: 50 pcs. Leadtime: On Request **
Total Price: 2.48 € *
1 pcs.
2.4752 €
10 pcs.
2.2967 €
50 pcs.
2.2015 €
100 pcs.
2.1539 €
500 pcs.
2.1301 €
7.3 mm
±20 %
68 µH
0.74 A
520 mΩ
SMD 7332
power inductor
7.3 mm
3.2 mm
Power choke, SMD 7332, 180 µH, 0.49 A, 744778218
Order No.:
 73D1872
Manufacturer:
 Würth Elektronik eiSos
Manufacturer SKU:
 744778218
Available: 50 pcs. Leadtime: On Request **
Total Price: 2.48 € *
1 pcs.
2.4752 €
10 pcs.
2.2967 €
50 pcs.
2.2015 €
100 pcs.
2.1539 €
500 pcs.
2.1301 €
7.3 mm
±20 %
180 µH
0.49 A
1.45 Ω
SMD 7332
power inductor
7.3 mm
3.2 mm
Power choke, SMD 7332, 56 µH, 0.84 A, 744778156
Order No.:
 73D1866
Manufacturer:
 Würth Elektronik eiSos
Manufacturer SKU:
 744778156
Available: 35 pcs. Leadtime: On Request **
Total Price: 2.48 € *
1 pcs.
2.4752 €
10 pcs.
2.2967 €
50 pcs.
2.2015 €
100 pcs.
2.1539 €
500 pcs.
2.1301 €
7.3 mm
±20 %
56 µH
0.84 A
470 mΩ
SMD 7332
power inductor
7.3 mm
3.2 mm
Power choke, SMD 7332, 2.2 µH, 4.5 A, 7447783022
Order No.:
 73D1883
Manufacturer:
 Würth Elektronik eiSos
Manufacturer SKU:
 7447783022
Available: 50 pcs. Leadtime: On Request **
Total Price: 2.48 € *
1 pcs.
2.4752 €
10 pcs.
2.3443 €
50 pcs.
2.2967 €
100 pcs.
2.2134 €
500 pcs.
2.1301 €
7.4 mm
±30 %
2.2 µH
4.5 A
19 mΩ
SMD 7332
power inductor
7.3 mm
3.2 mm
Power choke, SMD 7332, 2.2 µH, 4.02 A, 744778002
Order No.:
 73D1853
Manufacturer:
 Würth Elektronik eiSos
Manufacturer SKU:
 744778002
Available: 50 pcs. Leadtime: On Request **
Total Price: 2.48 € *
1 pcs.
2.4752 €
10 pcs.
2.2967 €
50 pcs.
2.2015 €
100 pcs.
2.1539 €
500 pcs.
2.1301 €
7.3 mm
±20 %
2.2 µH
4.02 A
20 mΩ
SMD 7332
power inductor
7.3 mm
3.2 mm
Power choke, SMD 7332, 270 µH, 0.4 A, 744778270
Order No.:
 73D1879
Manufacturer:
 Würth Elektronik eiSos
Manufacturer SKU:
 744778270
Available: 100 pcs. Leadtime: On Request **
Total Price: 2.48 € *
1 pcs.
2.4752 €
10 pcs.
2.3443 €
50 pcs.
2.2967 €
100 pcs.
2.2134 €
500 pcs.
2.1301 €
7.3 mm
±20 %
270 µH
0.4 A
2.31 Ω
SMD 7332
power inductor
7.3 mm
3.2 mm
Power choke, SMD 7332, 22 µH, 1.38 A, 744778122
Order No.:
 73D1861
Manufacturer:
 Würth Elektronik eiSos
Manufacturer SKU:
 744778122
Available: 50 pcs. Leadtime: On Request **
Total Price: 2.48 € *
1 pcs.
2.4752 €
10 pcs.
2.2967 €
50 pcs.
2.2015 €
100 pcs.
2.1539 €
500 pcs.
2.1301 €
7.3 mm
±20 %
22 µH
1.38 A
190 mΩ
SMD 7332
power inductor
7.3 mm
3.2 mm
Power choke, SMD 7332, 330 µH, 0.32 A, 744778233
Order No.:
 73D1874
Manufacturer:
 Würth Elektronik eiSos
Manufacturer SKU:
 744778233
Available: 50 pcs. Leadtime: On Request **
Total Price: 2.48 € *
1 pcs.
2.4752 €
10 pcs.
2.2967 €
50 pcs.
2.2015 €
100 pcs.
2.1539 €
500 pcs.
2.1301 €
7.3 mm
±20 %
330 µH
0.32 A
2.62 Ω
SMD 7332
power inductor
7.3 mm
3.2 mm
Power choke, SMD 7332, 470 µH, 0.37 A, 7447783471
Order No.:
 73D1897
Manufacturer:
 Würth Elektronik eiSos
Manufacturer SKU:
 7447783471
Available: 50 pcs. Leadtime: On Request **
Total Price: 2.48 € *
1 pcs.
2.4752 €
10 pcs.
2.3443 €
50 pcs.
2.2967 €
100 pcs.
2.2134 €
500 pcs.
2.1301 €
7.4 mm
±20 %
470 µH
0.37 A
2.04 Ω
SMD 7332
power inductor
7.3 mm
3.2 mm
Power choke, SMD 7332, 820 µH, 0.21 A, 74477828
Order No.:
 73D1880
Manufacturer:
 Würth Elektronik eiSos
Manufacturer SKU:
 74477828
Available: 50 pcs. Leadtime: On Request **
Total Price: 2.48 € *
1 pcs.
2.4752 €
10 pcs.
2.2967 €
50 pcs.
2.2015 €
100 pcs.
2.1539 €
500 pcs.
2.1301 €
7.3 mm
±20 %
820 µH
0.21 A
6.5 Ω
SMD 7332
power inductor
7.3 mm
3.2 mm
Power choke, SMD 7332, 220 µH, 0.54 A, 7447783221
Order No.:
 73D1893
Manufacturer:
 Würth Elektronik eiSos
Manufacturer SKU:
 7447783221
Available: 50 pcs. Leadtime: On Request **
Total Price: 2.48 € *
1 pcs.
2.4752 €
10 pcs.
2.3443 €
50 pcs.
2.2967 €
100 pcs.
2.2134 €
500 pcs.
2.1301 €
7.4 mm
±20 %
220 µH
0.54 A
1.04 Ω
SMD 7332
power inductor
7.3 mm
3.2 mm
Power choke, SMD 7332, 1000 µH, 0.23 A, 7447783102
Order No.:
 73D1889
Manufacturer:
 Würth Elektronik eiSos
Manufacturer SKU:
 7447783102
Available: 50 pcs. Leadtime: On Request **
Total Price: 2.48 € *
1 pcs.
2.4752 €
10 pcs.
2.3443 €
50 pcs.
2.2967 €
100 pcs.
2.2134 €
500 pcs.
2.1301 €
7.4 mm
±20 %
1000 µH
0.23 A
4.6 Ω
SMD 7332
power inductor
7.3 mm
3.2 mm
