7447231681 | Würth Elektronik eiSos

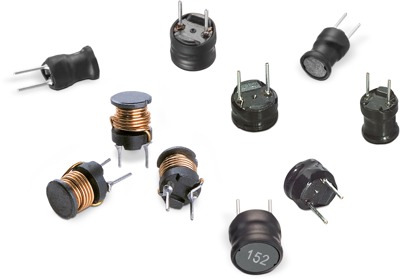

Choke, radial, 680 µH, 1 A, 7447231681
Unit Price (€ / pc.)
2.0111 € *
Available: 30 pcs.
Available in 5 Days: 749 pcs. - if ordered today
Total Price:
2.01 € *
Price list
Quantity
Price per unit*
1 pcs.
2.0111 €
50 pcs.
1.7850 €
100 pcs.
1.7493 €
250 pcs.
1.5589 €
500 pcs.
1.2971 €
*incl. VAT plus shipping costs
Subject to prior sale
Characteristics
- 2 additional pins for high mechanical stability
- High saturation core material
- Maximum current up to 3.1 A
- Maximum current up to 8.5 A
- Radial through-hole inductor
- Slim and miniature size
Application:
- Signal filtering
- Switches, switching power supply for small and medium voltage
- Power supply filter
- EMI filter
- Signal filtering
- EMI and power supply filter
- DC/DC converters
- Switching power
- Supplies for small and medium voltage
- Power supply for LED
- Nearfield applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Inductance | 680 µH | |
| Length | 11 mm | |
| Saturation current | 1.2 A | |
| Design | radial | |
| DC resistance | 590 mΩ | |
| Tolerance | ±10 % | |
| DC current | 1 A | |
| Width | 11 mm | |
| Measuring frequency | 1.3 MHz | |
| Height | 19 mm | |
| Version | wired inductor with wire winding |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Tray with 60 pieces |
| Customs tariff number | 85045000 |
| MSL | MSL 1 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
