74271221S | Würth Elektronik eiSos

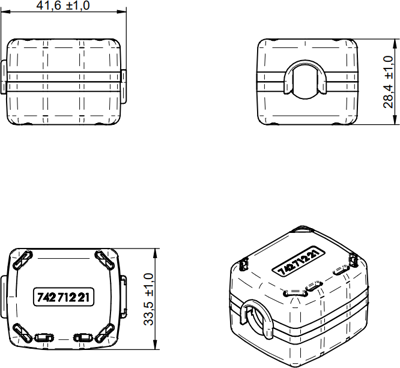

Folding ferrite, cable Ø 8.5-10.5 mm, (L x W x H) 41.6 x 33.5 x 28.4 mm, 74271221S

Order No.: 85D1305
EAN: 4099889408010
MPN:
74271221S
Series: WE-STAR-TEC

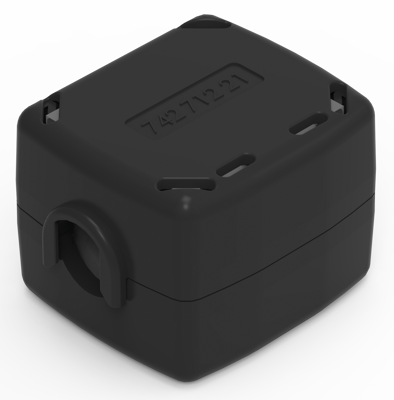

74271221S Würth Elektronik eiSos Ferrite cable cores Image 1
74271221S Würth Elektronik eiSos Ferrite cable cores Image 2
Image may differ
Unit Price (€ / pc.)
7.0924 € *
Available: 12 pcs.
Available in 5 Days: 21,185 pcs. - if ordered today
Total Price:
7.09 € *
Price list
Quantity
Price per unit*
1 pcs.
7.0924 €
10 pcs.
6.7830 €
50 pcs.
6.5926 €
140 pcs.
6.3546 €
280 pcs.
5.8667 €
*incl. VAT plus shipping costs
Subject to prior sale

Characteristics

  • Cable clamping protection
  • Classification of the plastic housing: UL94 V-0
  • Core material: NiZn/MnZn
  • Internal lock with WE-STAR-KEY key technology prevents unauthorized removal from the cable
  • Each packaging unit includes a key
  • Operating temperature: -25°C to +105°C
  • Pre-fixing cable system facilitates the assembly process
  • With reliable flexible cable fixing, developed in-house

Application:

  • EMC ferrite for the additional EMI suppression in the frequency area from 1 MHz to 1 GHz
  • Fastening for round cables with diameter 3.5 mm to 25.0 mm or if winded more turns through the ferrite
  • Reusable thanks to STAR-KEY technology, ideal for testing and measuring purposes in EMC laboratories
Technical specifications
Filter Property Value
Height 28.4 mm
Cable diameter 8.5-10.5 mm
Width 33.5 mm
Length 41.6 mm
Logistics
Property Value
Country of origin TW
Original Packaging Tray with 26 pieces
Customs tariff number 85480090
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
