74271142 | Würth Elektronik eiSos

Folding ferrite, cable Ø 3.5-5 mm, (L x W x H) 32.6 x 19 x 13 mm, 74271142

Order No.: 85D1298
EAN: 4099889407938
MPN:
74271142
Series: WE-STAR-TEC

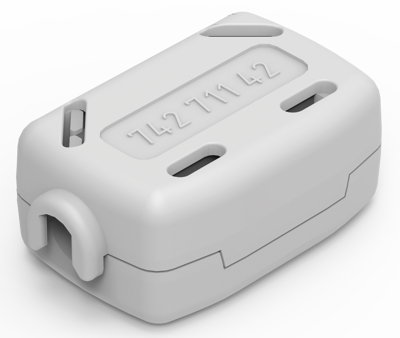

74271142 Würth Elektronik eiSos Ferrite cable cores Image 1
74271142 Würth Elektronik eiSos Ferrite cable cores Image 2
Image may differ
Unit Price (€ / pc.)
5.1646 € *
Available: 23 pcs.
Available in 5 Days: 51,451 pcs. - if ordered today
Total Price:
5.16 € *
Price list
Quantity
Price per unit*
1 pcs.
5.1646 €
10 pcs.
4.9980 €
50 pcs.
4.8195 €
100 pcs.
4.6410 €
250 pcs.
4.2840 €
*incl. VAT plus shipping costs
Subject to prior sale

Characteristics

  • Cable clamping protection
  • Classification of the plastic housing: UL94 V-0
  • Core material: NiZn/MnZn
  • Internal lock with WE-STAR-KEY key technology prevents unauthorized removal from the cable
  • Each packaging unit includes a key
  • Operating temperature: -25°C to +105°C
  • Pre-fixing cable system facilitates the assembly process
  • With reliable flexible cable fixing, developed in-house

Application:

  • EMC ferrite for the additional EMI suppression in the frequency area from 1 MHz to 1 GHz
  • Fastening for round cables with diameter 3.5 mm to 25.0 mm or if winded more turns through the ferrite
  • Reusable thanks to STAR-KEY technology, ideal for testing and measuring purposes in EMC laboratories

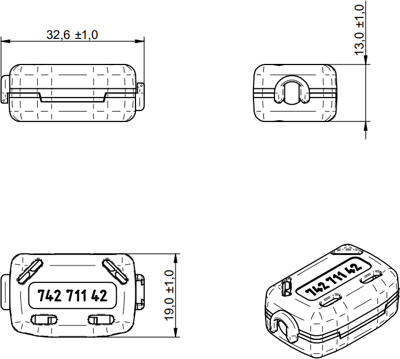

Technical specifications
Filter Property Value
Cable diameter 3.5-5 mm
Width 19 mm
Length 32.6 mm
Height 13 mm
Logistics
Property Value
Country of origin TW
Customs tariff number 85480090
Original Packaging Tray with 56 pieces
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
