782633601 | Würth Elektronik eiSos
Ferrite Bead, SMD 0603, 1 A, 0.2 Ω, 100 MHz, 600 Ω, ±25 %, 782633601
Unit Price (€ / pc.)
0.1154 € *
Available: 4,000 pcs.
Available in 5 Days: 686,209 pcs. - if ordered today
Total Price:
0.12 € *
Price list
Quantity
Price per unit*
1 pcs.
0.1154 €
10 pcs.
0.0869 €
100 pcs.
0.0762 €
250 pcs.
0.0714 €
500 pcs.
0.0690 €
*incl. VAT plus shipping costs
Subject to prior sale

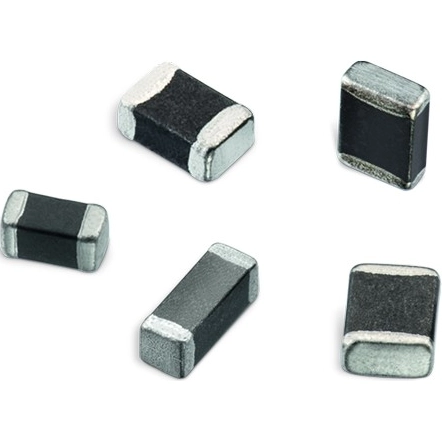

SMD ferrite bead, 782633601, Würth Elektronik eiSos
EMI-Entstörungsferritperle noise reduction, Operating temperature:-55 °C up to +125 °C.
Features
- High rated current up to 7.5 A
- Reliable Ni-Sn electrodes
Applications
- Data line filter for any application in the infotainment system
- Applications for noise reduction at power-trains, body control and multimedia systems
- Battery management systems, DC/DC converters, audio, etc
- Uncoupling of distribution voltage
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Design | SMD 0603 | |
| DC current | 1 A | |
| DC resistance | 0.2 Ω | |
| Measuring frequency | 100 MHz | |
| Impedance | 600 Ω | |
| Tolerance | ±25 % | |
| Length | 1.6 mm | |
| Width | 0.8 mm | |
| Height | 0.8 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85045000 |
| Original Packaging | Reel with 1 piece |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
