865090368008 | Würth Elektronik eiSos
Electrolytic capacitor, 10 µF, 16 V (DC), ±20 %, radial, pitch 0.8 mm, Ø 3 mm, 865090368008
Unit Price (€ / pc.)
0.3713 € *
Available: 50 pcs.
Available in 5 Days: 4,034 pcs. - if ordered today
Total Price:
0.37 € *
Price list
Quantity
Price per unit*
1 pcs.
0.3713 €
10 pcs.
0.3154 €
100 pcs.
0.2808 €
250 pcs.
0.2630 €
500 pcs.
0.2523 €
*incl. VAT plus shipping costs
Subject to prior sale

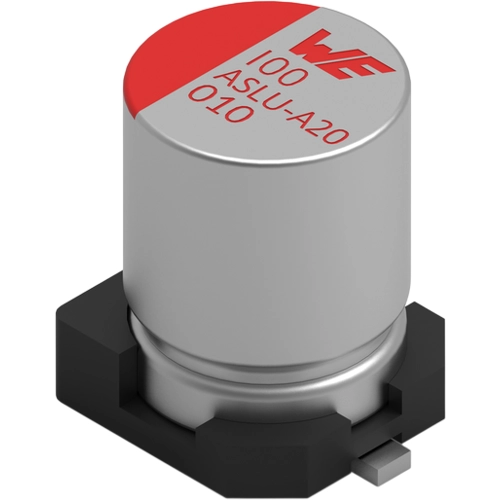

Aluminum Electrolytic Capacitor, 865090368008, Würth Elektronik eiSos
Aluminum electrolytic capacitor low Leakage +85 °C.
Applications
- Durable battery applications and small handheld devices
- Input and output capacitor for switched-mode power supply
- Filtering
- Smoothing
- e.g. DC/DC converter, AC/DC converter, satellite receiver, control panel
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | polar | |
| Capacity | 10 µF | |
| Rated voltage (DC) | 16 V | |
| Tolerance | ±20 % | |
| Ripple current | 20 mA | |
| Design | radial | |
| Grid | 0.8 mm | |
| Connection | SMD | |
| diameter | 3 mm | |
| Length | 3.3 mm | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Reel with 1 piece |
| Customs tariff number | 85322200 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
