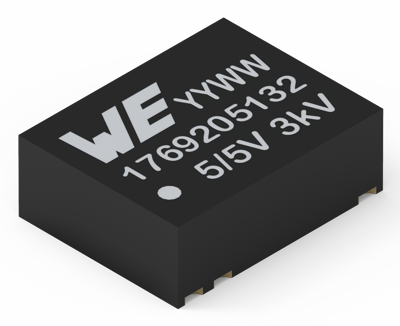

1769205132 | Würth Elektronik eiSos
DC converter, 4.5-5.5 VDC, 1 W, 1 output, 5 VDC, 91 % efficiency, 1769205132
Unit Price (€ / pc.)
3.9389 € *
Available: 45 pcs.
Available in 5 Days: 29,200 pcs. - if ordered today
Total Price:
3.94 € *
Price list
Quantity
Price per unit*
1 pcs.
3.9389 €
10 pcs.
3.8080 €
100 pcs.
3.7128 €
200 pcs.
3.3082 €
400 pcs.
2.9988 €
*incl. VAT plus shipping costs
Subject to prior sale
Characteristics
- 3 solder cycles supported
- Industrial standard package and pin configuration
- LGA
- Low conducted and radiated EMI
- Simple Design
- Stand alone solution
- UL62368 approval
Application:
- Data acquisition
- Test and measurement systems
- Interface and microcontroller supply
- Industrial controls
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 0.2 A | |
| Output voltage DC | 5 VDC | |
| Input voltage AC | 4.5-5.5 VDC | |
| Power | 1 W | |
| efficiency | 91 % | |
| Design | LGA-7 | |
| Isolation voltage | 3 kV | |
| Length | 9 mm | |
| Width | 7 mm | |
| Height | 3.1 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85423911 |
| MSL | MSL 3 |
| Original Packaging | Reel with 400 pieces |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead monoxide (lead oxide) |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
