60312002114503 | Würth Elektronik eiSos

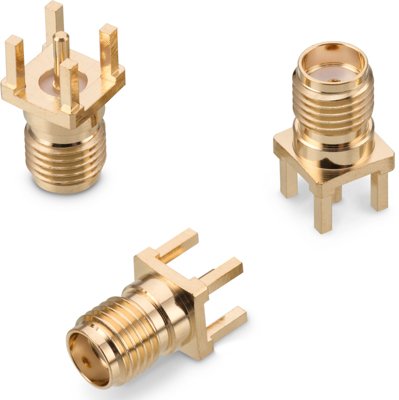

SMA socket 50 Ω, solder connection, straight, 60312002114503
Unit Price (€ / pc.)
6.3784 € *
Next delivery: 18 pcs. on 2025-06-04
Available in 5 Days: 10,000 pcs. - if ordered today
Total Price:
6.38 € *
Price list
Quantity
Price per unit*
1 pcs.
6.3784 €
50 pcs.
6.1285 €
100 pcs.
5.8905 €
180 pcs.
5.3907 €
360 pcs.
4.9028 €
*incl. VAT plus shipping costs
Subject to prior sale
Characteristics
- Interface: MIL-STD-348
- Mating Cycle: 500 Cycles
- Impedance: 50Ω
- Insulation Resistance: 5000MΩ(min.)
- Withstanding Voltage: 1000Vrms(min.)
- Ingress Protection: None l IP67
- Mating: Screw (Recommended by torque wrench tool)
Application:
- Network and communications
- RF Test and measurement equipment
- Industrial applications
- Electronic consumers and device
- Outdoor or humidity environment
Technical specifications
| Connector | SMA | |
| Version | socket | |
| Contact connection | solder connection | |
| Impedance | 50 Ω | |
| Contact material | beryllium copper | |
| Design | straight |
Download
Logistics
| Customs tariff number | 85366930 |
| Country of origin | TW |
| Original Packaging | Tray with 180 pieces |
| MSL | MSL 1 |
Compliance
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
