885012108011 | Würth Elektronik eiSos

Ceramic capacitor, 22 µF, 10 V (DC), ±20 %, SMD 1206, X5R, 885012108011

Order No.: 59D4672
EAN: 4099889103175
MPN:
885012108011
Series: WCAP-CSGP-1206

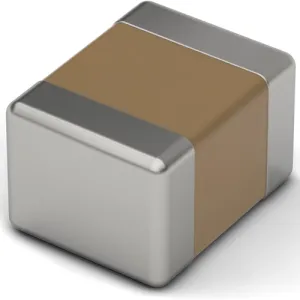

885012108011 Würth Elektronik eiSos Ceramic Capacitors
Image may differ
Unit Price (€ / pc.)
0.8330 € *
Available: 2,000 pcs.
Available in 5 Days: 10,000 pcs. - if ordered today
Total Price:
0.83 € *
Price list
Quantity
Price per unit*
1 pcs.
0.8330 €
10 pcs.
0.7497 €
100 pcs.
0.6783 €
500 pcs.
0.5950 €
10000 pcs.
0.0938 €
*incl. VAT plus shipping costs
Subject to prior sale

Characteristics

  • Ceramic: NP0 (Class I), X5R (Class II), X7R (Class II)
  • High electrical precision and stability ceramic especially for NP0
  • High performance ceramic
  • Operating temperature: -55°C to +125°C for NP0 and X7R, -55°C to +85°C for X5R
  • Temperature coefficient: ±30 ppm/°C
  • Termination: Cu/Ni/Sn
  • Product series for general application
  • Capacity range: 1 pF ‒ 10 µF
  • Capacity range: 1 pF ‒ 100 µF
  • High electrical precision and stability of the ceramic, especially in the case of NP0
  • High-performance ceramic
  • Minimal aging, especially with NP0
  • Mounting type: SMT chip
  • Recommended soldering method: Reflow soldering
  • Voltage range (UR): 6.3 - 100 V(DC)

Application:

  • Temperature compensation (NP0)
  • Coupling
  • Decoupling
  • Bypass
  • Smoothing
  • Filtering
  • Resonant circuit
  • Temperature compensation (NP0)
  • Coupling
  • Decoupling
  • Bypass
  • Smoothing
  • Filtering
  • Resonant circuit
  • Temperature compensation (NP0)
  • Coupling
  • Decoupling
  • Bypass
  • Smoothing
  • Filtering
  • Resonant circuit
Technical specifications
min. operating temperature -55 °C
Design SMD 1206
Rated voltage (DC) 10 V
Capacity 22 µF
max. operating temperature 85 °C
Tolerance ±20 %
Length 3.2 mm
Dielectric material X5R
Logistics
MSL MSL 1
Original Packaging Reel with 2,000 pieces
Country of origin TW
Customs tariff number 85322400
Compliance
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
