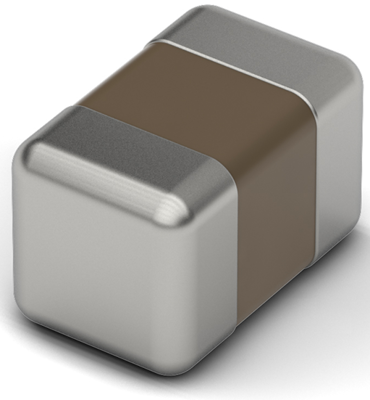

885012105020 | Würth Elektronik eiSos

Ceramic capacitor, 10 µF, 6.3 V (DC), ±20 %, SMD 0402 (1005), X5R, 885012105020

Order No.: 59D4623
EAN: 4099889012255
MPN:
885012105020
Series: WCAP-CSGP 0402
885012105020 Würth Elektronik eiSos Ceramic Capacitors
Image may differ
Unit Price (€ / pc.)
0.3903 € *
Available: 9,523 pcs.
Available in 5 Days: 754,068 pcs. - if ordered today
Total Price:
0.39 € *
Price list
Quantity
Price per unit*
1 pcs.
0.3903 €
50 pcs.
0.3630 €
100 pcs.
0.3273 €
500 pcs.
0.2856 €
50000 pcs.
0.0325 €
*incl. VAT plus shipping costs
Subject to prior sale

Characteristics

  • Ceramic: NP0 (Class I), X5R (Class II), X7R (Class II)
  • Operating temperature: -55°C to +125°C for X7R, -55°C to +85°C for X5R
  • Temperature coefficient: ±15 % for X7R and X5R
  • Termination: Cu/Ni/Sn

Application:

  • Coupling
  • Decoupling
  • Bypass
  • Smoothing
  • Filtering
  • Resonant circuit
Technical specifications
Filter Property Value
Design SMD 0402 (1005)
max. operating temperature 85 °C
Capacity 10 µF
Dielectric material X5R
min. operating temperature -55 °C
Tolerance ±20 %
Rated voltage (DC) 6.3 V
Length 1 mm
Logistics
Property Value
Country of origin TW
Original Packaging Reel with 10,000 pieces
Customs tariff number 85322400
MSL MSL 1
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
