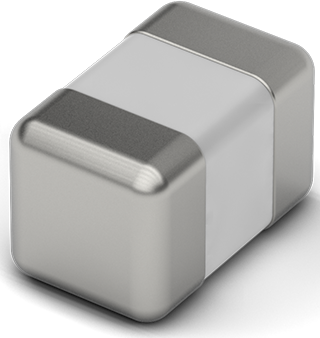

885012007037 | Würth Elektronik eiSos

Characteristics

• Ceramic: NP0 (Class I), X5R (Class II), X7R (Class II)
• High electrical precision and stability ceramic especially for NP0
• High performance ceramic
• Operating temperature: -55°C to +125°C for NP0 and X7R, -55°C to +85°C for X5R
• Temperature coefficient: ±30 ppm/°C
• Termination: Cu/Ni/Sn
• Product series for general application
• Capacity range: 1 pF ‒ 10 µF
• Capacity range: 1 pF ‒ 47 µF
• High electrical precision and stability of the ceramic, especially in the case of NP0
• High-performance ceramic
• Minimal aging, especially with NP0
• Mounting type: SMT chip
• Recommended soldering method: Reflow soldering
• Voltage range (UR): 6.3 - 100 V(DC)
• Wave soldering (only for thickness ≤1.00 mm) for NP0 and X7R

Application:

• Temperature compensation (NP0)
• Coupling
• Decoupling
• Bypass
• Smoothing
• Filtering
• Resonant circuit
• Temperature compensation (NP0)
• Coupling
• Decoupling
• Bypass
• Smoothing
• Filtering
• Resonant circuit
• Temperature compensation (NP0)
• Coupling
• Decoupling
• Bypass
• Smoothing
• Filtering
• Resonant circuit
