UGVC2401 | WÖHRLE
DC power supply, uninterruptible capacitor buffer
NCNR (non cancelable / non returnable)

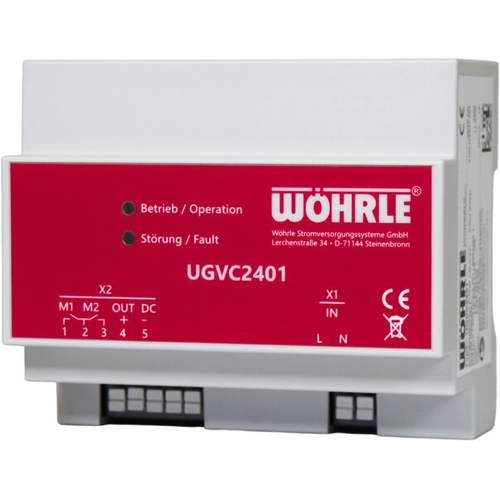

DC power supply, UGVC2401, WÖHRLE
The UGVC2401 DC UPS, a switching power supply with integrated ultracapacitors designed as a compact, uninterruptible DC-to-DC UPS system, features built-in output line protection.When operating on mains power, the UGVC2401 is charged by an internal, regulated DC power supply, and the connected loads are supplied. In the event of an interruption in the DC supply, the energy stored in the ultracapacitors is released in a controlled manner.The loads are powered by the UGVC2401 until it or the ultracapacitors are discharged. The backup time depends on the state of charge of the ultracapacitors and the discharge current.
Due to the very low internal resistance of ultracapacitors, pulse currents of up to 10 A (120 ms) are possible during mains operation when the ultracapacitors are charged. The pulse current can selectively trip a circuit breaker, even if multiple loads are connected.
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85072080 |
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
