UGVC2440P | WÖHRLE
Power supply, ultra-capacitor buffering, 19 to 25.5 VDC, 40 A, UGVC2440P
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
708.05 € *
Available in 3 Days: 192 pcs. - if ordered today

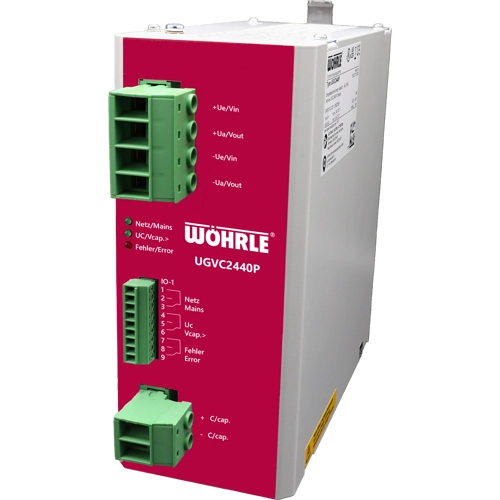

DC power supply, UGVC2440P, WÖHRLE
DC power supply, ultra-capacitor buffering, 24 V DC, energy content: 4.0 kJ, nominal output current
Features
- Powerful solution for DC power supply
- Operating voltage of 24 V DC and current capacity of 20 Amperes
- High load stability through capacitor buffering
- Compact design for control panels and electrical systems
- Ensures operational continuity in critical applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | ultra-capacitor buffering | |
| Output current | 40 A | |
| Output voltage DC | 19 to 25.5 VDC | |
| Input voltage AC | 21.6-26.4 VDC | |
| efficiency | 90 % | |
| Degree of protection (IP) | IP20 | |
| Width | 84 mm | |
| Height | 193 mm | |
| Depth | 198 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85072080 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
