EPNS232410/N | WÖHRLE
Power supply, power supply, 24 to 28 VDC, 10 A, 240 W, EPNS232410/N
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
189.21 € *
Standard delivery time from the manufacturer is: 1 Week

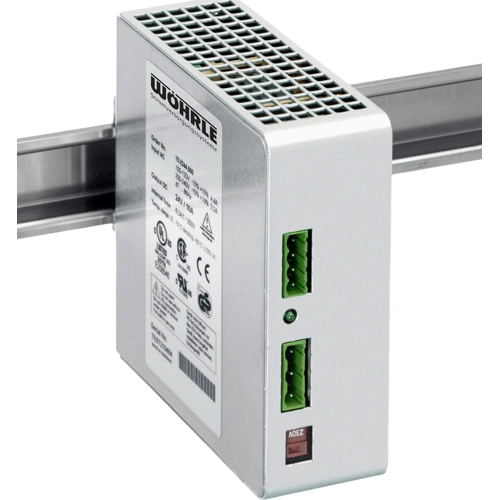

DC power supply, EPNS232410/N, WÖHRLE
Single-phase power supply, primary switched, input 90-132/180-264V output 24VDC, 10A.
Features
- 24 V DC output voltage with 10 A current capacity
- Compact design with only 45 mm width
- Integrated overtemperature and overvoltage protection
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | power supply | |
| Number of outputs | 1 | |
| Output current | 10 A | |
| Output voltage DC | 24 to 28 VDC | |
| Input voltage AC | 180-264 VDC | |
| Power | 240 W | |
| efficiency | 87 % | |
| Width | 45 mm | |
| Height | 120 mm | |
| Depth | 110 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CH |
| Customs tariff number | 85044083 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
