DPN409622 | WÖHRLE
Power supply, power supply, 98 to 99 VDC, 22 A, 2112 W, DPN409622
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
986.51 € *
Standard delivery time from the manufacturer is: 1 Week

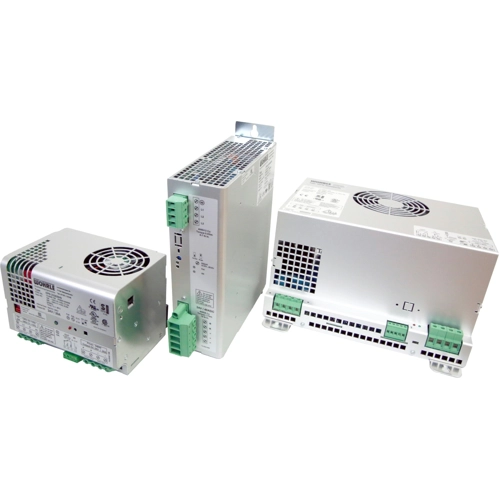

DC power supply, DPN409622, WÖHRLE
Three-phase power supply, output: 93-99V; rated current: 22 amperes.
Features
- Primarily clocked for high efficiency
- Flexible output voltage of 93 to 99 V
- 22 Ampere rated current for stable supply
- Three-phase input voltage range of 340-460 V AC
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | power supply | |
| Number of outputs | 1 | |
| Output current | 22 A | |
| Output voltage DC | 98 to 99 VDC | |
| Input voltage AC | 340-460 VDC | |
| Power | 2112 W | |
| efficiency | 94.5 % | |
| Width | 280 mm | |
| Height | 258 mm | |
| Depth | 160 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CH |
| Customs tariff number | 85044083 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
