10062214 | WISKA

Cable junction box, no. of entries: 4, 10 mm², black, IP66/IP67, 10062214

Order No.: 49P0082
EAN: 4007685025676
MPN:
10062214
COMBI 1010 BK
Series: COMBI 1010

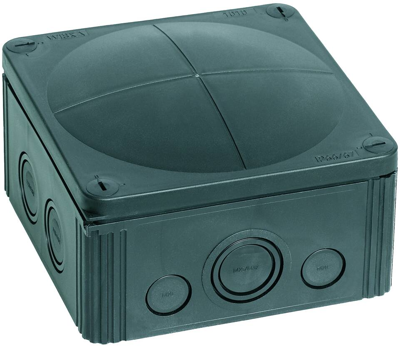

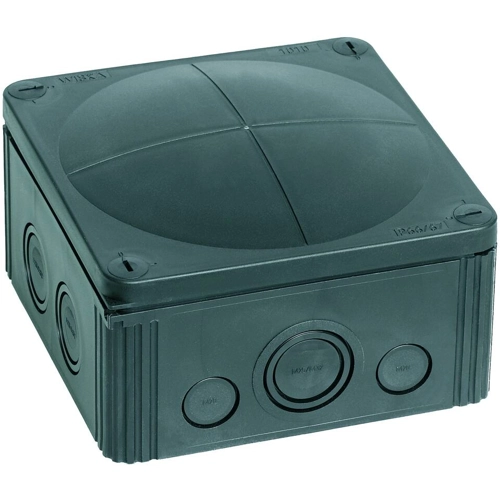

10062214 WISKA Flush-mounted Boxes, Junction Boxes Image 1

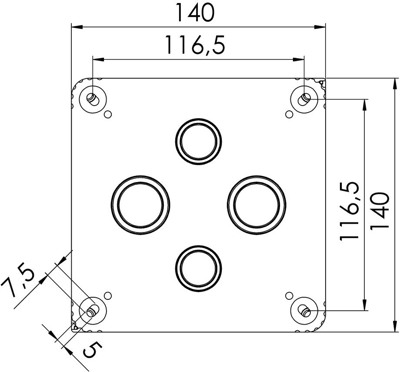

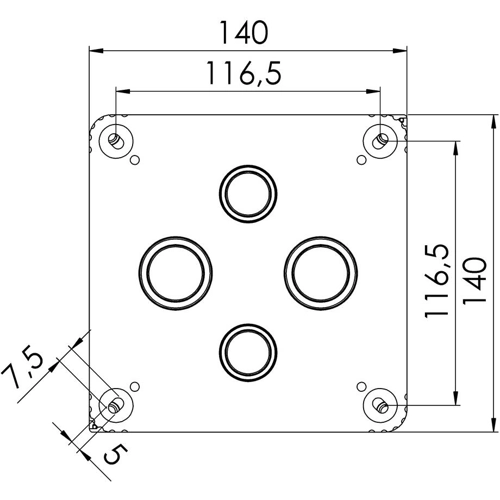

10062214 WISKA Flush-mounted Boxes, Junction Boxes Image 2

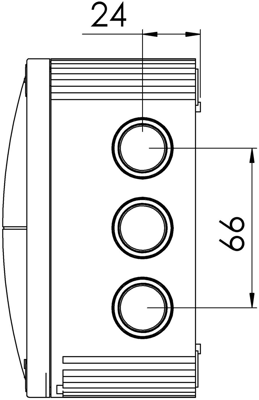

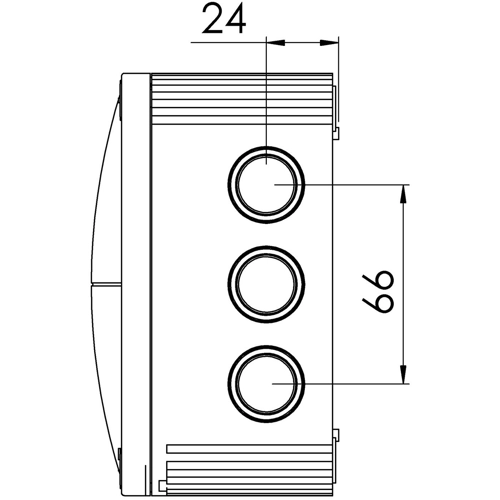

10062214 WISKA Flush-mounted Boxes, Junction Boxes Image 3
Image may differ
Unit Price (€ / pc.)
12.6616 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
12.66 € *
Price list
Quantity
Price per unit*
1 pcs.
12.6616 €
10 pcs.
11.6025 €
50 pcs.
10.9004 €
100 pcs.
10.1983 €
*incl. VAT plus shipping costs
Subject to prior sale

Junction box, 10062214, WISKA

COMBI damp-proof cable junction box made of flame-retardant, halogen-free, reinforced thermoplastic. The box, with a high protection rating, is weather- and UV-resistant, as well as impact-resistant and break-proof. Ideally suited for extreme loads or installation indoors or outdoors. High resistance to vegetable and animal fat, mineral oil, diesel, weak acids, weak and strong alkalis, and alcohol. Break-out openings on the side and in the base, in various sizes, allow the use of cable entries with cable glands and locknuts. A captive quick-release cover screw closes the box with just a quarter turn. The box is fastened through an internal opening outside the sealing area.

Technical specifications
Degree of protection (IP) IP66/IP67
Colour black
Cable cross-section 10 mm²
Version junction box
Insertions 4
Logistics
Customs tariff number 39269097
Country of origin DE
Compliance
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
