10062210 | WISKA
Cable junction box, no. of entries: 4, 10 mm², white, IP66/IP67, 10062210
Unit Price (€ / pc.)
15.4819 € *
Available: 0 pcs.
Leadtime: 3 Weeks **

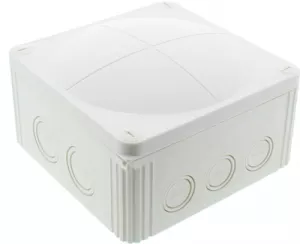

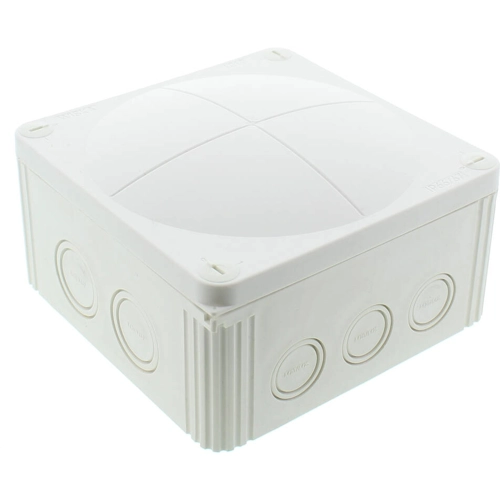

Junction box, 10062210, WISKA
COMBI damp-proof cable junction box made of flame-retardant, halogen-free, reinforced thermoplastic. The box, with a high protection rating, is weather- and UV-resistant, as well as impact-resistant and break-proof. Ideally suited for extreme loads or installation indoors or outdoors. High resistance to vegetable and animal fat, mineral oil, diesel, weak acids, weak and strong alkalis, and alcohol. Break-out openings on the side and in the base, in various sizes, allow the use of cable entries with cable glands and locknuts. A captive quick-release cover screw closes the box with just a quarter turn. The box is fastened through an internal opening outside the sealing area.
Technical specifications
| Version | Abzweigkasten | |
| Insertions | 4 | |
| Colour | weiß | |
| Cable cross-section | 10 mm² | |
| Degree of protection (IP) | IP66/IP67 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 39269097 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
